Part Number: BA7725S
MFG: ROHM
Package Cooled: DIP
Description: The BA7725S and BA7725FS are analog companders designed for KARAOKE echo systems, and logarithmically ...
- Table of contents:
BA7725S
-
Suppliers
DataSheet
General Description
BA7725S General Description
The BA7725S and BA7725FS are analog companders designed for KARAOKE echo systems, and logarithmically compress the signal level by 1 / 2 and then logarithmically expand it by a factor of 2. These ICs can be used in combination with the BU9252S or BU9252F to create a digital echo system. These ICs have an internal line mixer amplifier for mixing line input and echo signals. The internal electronic volume control makes it possible to adjust the mixer level and loop level mixer with an external DC voltage.
BA7725S Maximum Ratings
| Parameter | Symbol | Limits | Unit | |
| Power supply voltage | Vcc |
13 | V | |
| Power dissipation | BA7725S | Pd | 1000*1 | mW |
| BA7725FS | 600*2 | |||
| Operating temperature | Tstg | 55 ~ + 125 | ||
| Storage temperature | Tj | 10 ~ + 70 | ||
BA7725S Features
Internal logarithmic 1 / 2 compression circuit and 2 * expansion circuit
Internal 2-channel buffer amplifier used as a tertiary low pass filter
Internal mixer amplifier that mixes line input and microphone input
Internal electronic volume control allows for adjustment of the echo mixer level and loop mixer level using an external DC voltage.
Internal microphone amplifier and microphone input ON / OFF switch
BA7725S Typical Application
Circuits that require analog signal compression and expansion

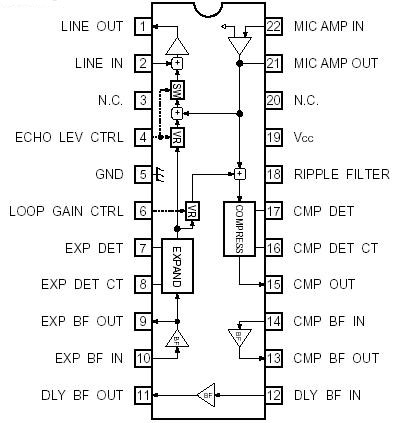

BA7725S Connection Diagram
BA7725S
PDF/DataSheet Download
- Datasheet: BA7725S
- File Size: 96432 KB
- Manufacturer: ROHM [Rohm]
- Click here to Download
