MFG:ROHM Package Cooled:DIP
Part Number: BA7760
MFG: ROHM
Package Cooled: DIP
Description: The BA7760 and BA7760F are dual microphone amplifiers designed for audio signal amplification. These a...
- Table of contents:
BA7760
-
Suppliers
DataSheet
General Description
BA7760 General Description
The BA7760 and BA7760F are dual microphone amplifiers designed for audio signal amplification. These are low noise amplifiers with a low -122dBV (typically) equivalent input noise voltage. Each IC has an internal mixer buffer amplifier for the mixing of signals from two channels. When used with the BA7725S or BA7725FS, the BA7726AS or BA7726AFS and BU9252S or BU9252F, these ICs simplify the configuration of digital echo systems with two inputs (for karaoke duets, for instance).
BA7760 Maximum Ratings
| Parameter | Symbol | Limits | Unit | |
| Applied voltage | VCC |
15 | V | |
| Power dissipation | BA7760 | Pd | 600*1 | mW |
| BA7760F | 450*2 | |||
| Operating temperature | Topr | 25 ~ + 75 | ||
| Storage temperature | Tstg | 55 ~ + 125 | ||
BA7760 Features
Internal 2-channel low noise microphone amplifier.
Internal mixer buffer amplifier with mute function.
Available in 2 types of packages: DIP 14-pin or SOP 14-pin.
BA7760 Typical Application
Audio equipment with karaoke features, VCRs, LDs, etc.

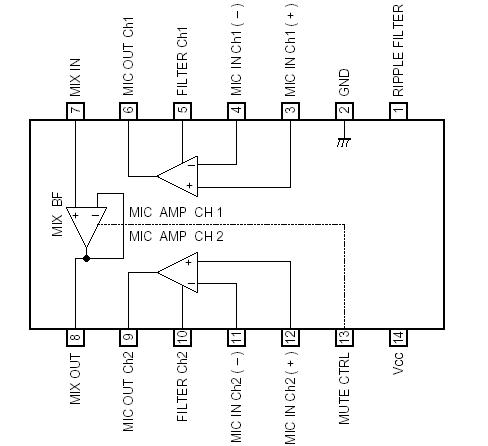

BA7760 Connection Diagram
BA7760
PDF/DataSheet Download
- Datasheet: BA7760
- File Size: 69617 KB
- Manufacturer: ROHM [Rohm]
- Click here to Download
