Part Number: BA9700AF



MFG: ROHM





Description: The BA9700A, BA9700AF and BA9700AFV are switching regulators that use a pulse width modulation (PWM) s...


Urgent Purchase

BA9700AF General Description


The BA9700A, BA9700AF and BA9700AFV are switching regulators that use a pulse width modulation (PWM) system.

They use a transistor switch to stabilize the output voltage.

By the use of the transistor, power loss is decreased, fluctuation efficiency is improved, and the circuit is made more compact and single.

BA9700AF Maximum Ratings

Parameter Symbol Limits Unit
Power supply Voltage VCC 24 V
Power dissipation BA9700A Pd 600*1 mW
BA9700AF 350*2
BA9700AFV 350*3
Operating temperature Topr -20~+80
Storage temperature Tstg -55~+150

BA9700AF Features

 Output voltage can step up, step down, or invert at an arbitrary level.
Low current consumption. (typically 1.7mA)
Wide oscillation frequency range. (typically 2.8k ~ 470kHz)
Built-in reference voltage current. (typically 2.57V)
Operates at low voltage. (minimally 3.55V)
Dead time controller restricts operation when overloaded.
Power switch can isolate all circuits in the IC.
Best suited for battery operated equipment.
Compact 14-pin SSOP package (BA9700AFV).

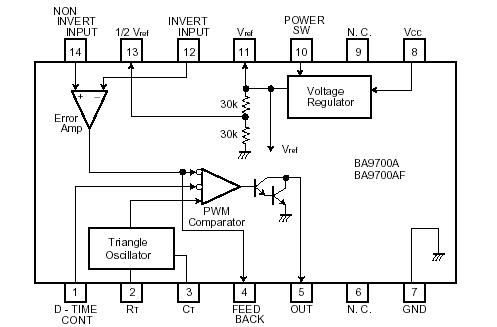

BA9700AF Connection Diagram

BA9700AF Connection Diagram
