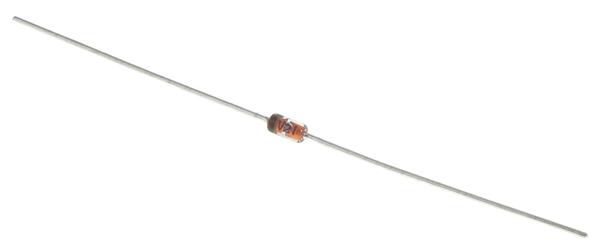

BAV21

Product :
Peak Reverse Voltage :
Forward Continuous Current :
Max Surge Current :
Configuration :
Recovery Time :
Forward Voltage Drop :
Maximum Reverse Leakage Current :
Maximum Power Dissipation :
Operating Temperature Range :
Package / Case :
Packaging : Reel


Specifications

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing	Package Marking Convention**
BAV21	Full Production	RoHS Compliant	$0.0167	DO-35	2	BULK	DO-35A	Line 1: $Y (Fairchild logo) Line 2: BA Line 3: V2 Line 4: 1
BAV21_T50A	Full Production	RoHS Compliant	N/A	DO-35	2	AMMO	DO-35A	Line 1: $Y (Fairchild logo) Line 2: BA Line 3: V2 Line 4: 1
BAV21_T50R	Full Production	RoHS Compliant	N/A	DO-35	2	TAPE REEL	DO-35A	Line 1: $Y (Fairchild logo) Line 2: BA Line 3: V2 Line 4: 1

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product BAV21 is available. Click here for more information .

Type Typ	Repetitive peak reverse voltage Periodische Spitzensperrspannung VRRM [V]	Surge peak reverse voltage Stoßspitzensperrspannung VRSM [V]
BAV 18	50	60
BAV 19	100	120
BAV 20	150	200
BAV 21	200	250

Max. average forward rectified current, R-load T_A = 25I_FAV 250 mA ¹⁾
Dauergrenzstrom in Einwegschaltung mit R-Last
Repetitive peak forward current f > 15 Hz I_FRM 650 mA ¹⁾
Periodischer Spitzenstrom
Max. power dissipation Verlustleistung T_A = 25P_tot 500 mW ¹⁾
Peak forward surge current Stoßstrom, t 1 s T_j = 25 I_FSM 1 A
Peak forward surge current Stoßstrom, t = 1 s T_j = 25I_FSM 5 A

1) Valid, if leads are kept at T_A = 25 at a distance of 5 mm from case Gültig, wenn die Anschlußdrähte in 5 mm Abstand von Gehäuse auf T_A = 25 gehalten werden

Parameters:

Technical/Catalog Information	BAV21
Vendor	Fairchild Optoelectronics Group
Category	Discrete Semiconductor Products
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	250V
Current - Average Rectified (Io)	200mA
Voltage - Forward (Vf) (Max) @ If	1.25V @ 200mA
Reverse Recovery Time (trr)	50ns
Current - Reverse Leakage @ Vr	100nA @ 200V
Speed	Small Signal =< 200mA (Io), Any Speed
Mounting Type	Through Hole, Axial
Package / Case	DO-35, Axial
Packaging	Bulk
Capacitance @ Vr, F	5pF @ 0V, 1MHz
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	BAV21 BAV21
