BBA-322-A

Bandwidth :
Output Intercept Point :
Mounting Style :
Package / Case :
Packaging : Tube
Maximum Operating Temperature : + 85 C
Type : RF Amplifier
Operating Frequency : 3000 MHz
Supply Current : 35 mA
Noise Figure : 3.8 dB
Operating Supply Voltage : 4.8 V to 5.2 V


Features:

 High Gain Model
10 Mhz-3 Ghz Broadband Operation
+20dB Small Signal Gain @ 900MHz
Up to +10 (10mW) Linear Output Power
3.8 dB Noise Figure
Operates From a Single Supply


Application

 TX/RX Range Enhancement*
IF or RF Buffering
Driver or Final Stage for PA
General-Purpose Gain Blocks

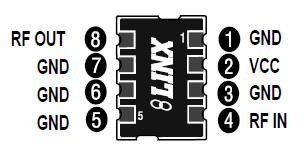

Pinout




Specifications

These ratings are intended to indicate the limits past which device damage may occur. Operation of the device at these limits is not suggested or guaranteed.

Description

The BBA series is a family of low-cost high-performance broadband RF amplifiers. The modules are ideally suited to a wide range of amplification and buffering applications including extending the range of Linx's own RF modules (when legally appropriate). Housed in a compact SMD package, the hybrid amps are prematched to 50 source and load impedances and require no external RF components. The modules utilize a GaHBT gain stage which yields high gain and IP3, excellent flatness and low noise.

Parameters:

Technical/Catalog Information	BBA-322-A
Vendor	Linx Technologies Inc
Category	RF and RFID
Package / Case	Module
Voltage - Supply	4.8V ~ 5.2V
Current - Supply	35mA ~ 60mA
Gain	20dB
Frequency	0Hz ~ 3GHz
RF Type	General Purpose
Packaging	Tube
Noise Figure	3.8dBm
P1db	22.5dBm
Test Frequency	2GHz
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	BBA 322 A BBA322A
