Product Details

Description



Features:

* Suitable for AF-Driver stage and low power output stages
* Complementary pair with BC818F

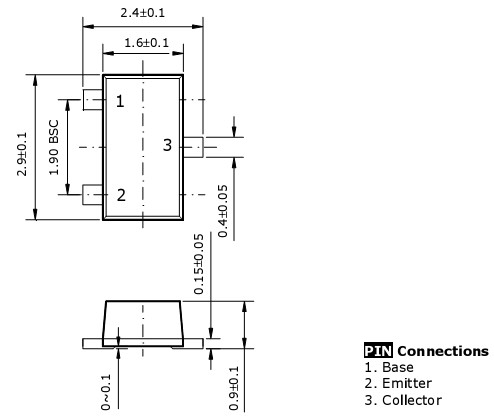

Pinout



Connection Diagram




Specifications

PARAMETER SYMBOL Ratings UNIT
Collector-Base Voltage VCBO -30 V
Collector-Emitter Voltage VCEO -25 V
Emitter-Base Voltage VEBO -5 V
Collector current IC -800 mA
Collector dissipation PC 200 mW
Junction temperature Tj 150
Storage temperature Tstg -55~150





Description

Bipolar transistors BC808F, also called junction type transistors, are a kind of transistors. Unlike field-effect transistors (unipolar transistors), they are called bipolar because they have two kinds of carriers (hole, electron)

* High current application
* Switching application
