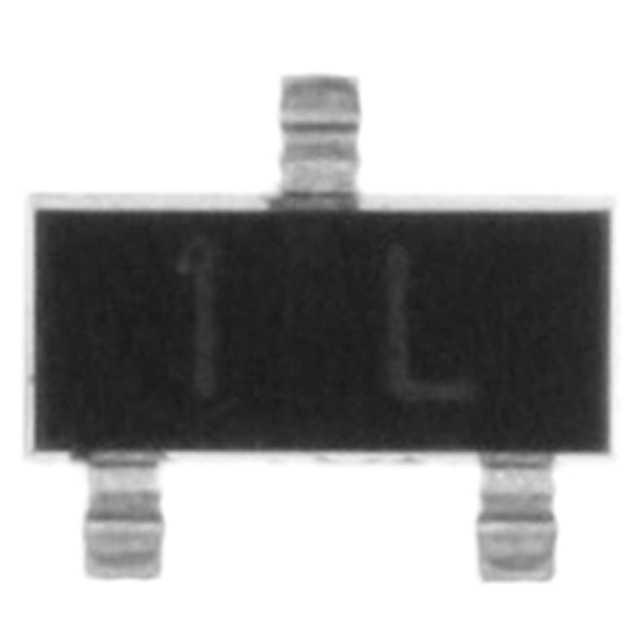

See larger image

SeekIC No. : 004297400 Detail

BC848CW: Features: Ideally Suited for Automatic Insertion ComplementaryPNP Types Available(BC856W-BC858W) For Switching and AF Amplifier ApplicationsPinout<IMG src= /uploadfile/ic-mfg/360/Fig.34.jpg > ...

BC848CW Data Sheet

Get Latest Price

Part Number:: BC848CW
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

BC8450 evaluate
Specifications SOT23 SYMBOL BC846 BC847 BC848 BC849 BC850 UNIT Collector-Base Volta...
BC846 evaluate
US $.03 - .04 / Piece

Transistors Bipolar (BJT) Ep Trans NPN,0.1A,65V
BC846 T/R evaluate
Transistors Bipolar (BJT) TRANS GP TAPE-7

Product Details

Description

Features:

Ideally Suited for Automatic Insertion
ComplementaryPNP Types Available(BC856W-BC858W)
For Switching and AF Amplifier Applications

Pinout

<IMG src="/uploadfile/ic-mfg/360/Fig.34.jpg">

Specifications

Characteristic		Symbol	Value	Unit
Collector-Base Voltage	BC846 BC847 BC848	V_CBO	80 50 30	V
Collector-Emitter Voltage	BC846 BC847 BC848	V_CEO	65 45 30	V
Emitter-Base Voltage	BC846, BC847 BC848	V_EBO	6.0 5.0	V
Collector Current		I_C	100	mA
Peak Collector Current		I_CM	200	mA
Peak Emitter Current		I_EM	200	mA
Power Dissipation (Note 1)		P_d	200	mA
Thermal Resistance, Junction to Ambient (Note 1)		R_JA	625	°C/W
Operating and Storage Temperature Range		T_j,T_STG	-65 to +150	°C

Part Number	BC848CW
Product Type	NPN
V_CEO (V)	30
I_C(A)	0.1
I_CM (A)	0.2
P_D (W)	0.2
h_FE Min	420
h_FE Max	800
@I _C (A)	0.002
V_CE(SAT) Max (mV)	250
@ I_C (A)	0.01
@ I_B (mA)	0.5
f_T Min (MHz)	300
R_{CE (SAT)} (m)	-
