Product Details

Description

Features:

Current gain matching
Base-emitter voltage matching

Application

Current mirror
Differential amplifier

Pinout

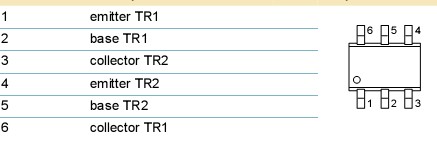

Connection Diagram

Specifications

Symbol	Parameter	Conditions	Min	Max	Unit
Per transistor
V_CBO	collector-base voltage	open emitter	-	50	V
V_CEO	collector-emitter voltage	open base	-	45	V
V_EBO	emitter-base voltage	open collector	-	6	V
I_C	collector current (DC)		-	100	mA
I_CM	peak collector current	single pulse; tp 1ms	-	200	mA
P_tot	total power dissipation	T_amb 25 °C	-	200	mW
T_stg	storage temperature		-65	+150	°C
T_j	junction temperature		-	150	°C
T_amb	ambient temperature		-65	+150	°C
Per device
P_tot	total power dissipation	T_amb 25 °C	[1]-	300	mW

[1] Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated and standard footprint.

Description

NPN matched double transistor BCM847BS in a SOT363 (SC-88) SMD plastic package. Matched version of BC847BS. The transistors are fully isolated internally.
PNP equivalent: BCM857BS.
