Purchase BD6155FVM, In-stock BD6155FVM From SeekIC.
MFG:ROHM Package Cooled:SOT-183 D/C:05+
- Table of contents:
BD6155FVM
-
Suppliers
DataSheet
General Description
BD6155FVM Maximum Ratings
| Parameter | Symbol | Limits | Unit |
| Maximum supply voltage | VBAT | -0.3~+6.0 | V |
| Maximum input voltage | VIN | -0.3~+6.0 | V |
| Power dissipation | Pd | 350 * | mW |
| Operating temperature | Topr | -25 to +75 | |
| Storage temperature | Tastg | -55 to +125 |
* Reduce to 3.5mW/°C when Ta=25°C or above.
BD6155FVM Features
1) Built-in charging pump step-up circuit.
2) Built-in constant current driver for LED. (Current value : 4 steps variable)
3) Ultra small MSOP8 package. (Height 0.9mm Max.)
2) Built-in constant current driver for LED. (Current value : 4 steps variable)
3) Ultra small MSOP8 package. (Height 0.9mm Max.)
BD6155FVM Typical Application
*Small portable appliances, such as cellular phones, PHS, PDA
*Battery-powered equipments using the white LED.
*Battery-powered equipments using the white LED.

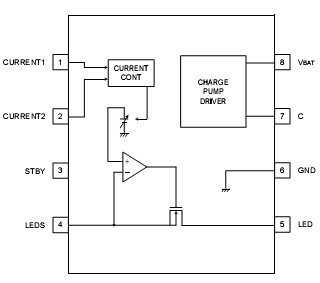

BD6155FVM Connection Diagram
BD6155FVM
PDF/DataSheet Download
- Datasheet: BD6155FVM
- File Size: 114246 KB
- Manufacturer: ROHM [Rohm]
- Click here to Download
