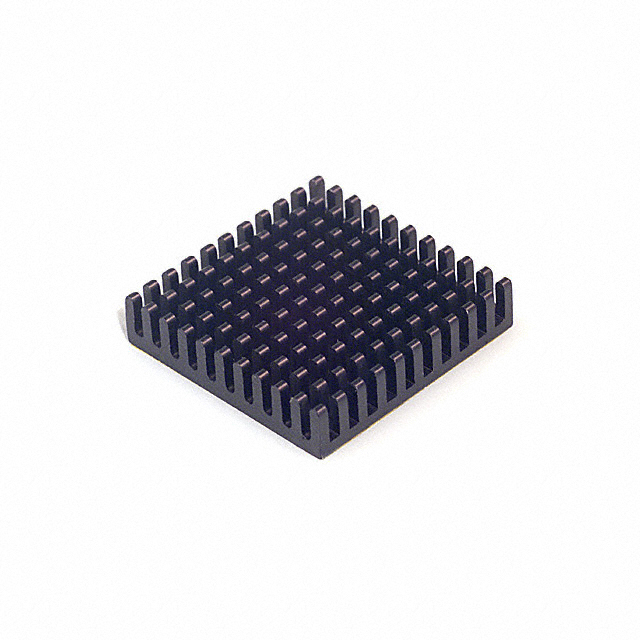

BDN16-3CB/A01: HEATSINK CPU W/ADHESIVE 1.61"SQ

BDN16-3CB/A01 Data Sheet

US $ 1.28~2.52 / Piece | Get Latest Price

Part Number:: BDN16-3CB/A01
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~100
100~500
500~1000
1000~5000

Unit Price
$2.52
$2.27
$1.76
$1.51
$1.41
$1.28

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

BDN10-3CB/A01 evaluate
US $.95 - 1.87 / Piece

HEATSINK CPU W/ADHESIVE 1.01"SQ
BDN103CBA01 evaluate
US $1.27 - 1.86 / Piece

Heat Sinks IERC Heat Sink 1.01x1.01x0.355
BDN11-3CB/A01 evaluate
US $.96 - 1.88 / Piece

HEATSINK CPU W/ADHESIVE 1.11"SQ

Product Details

Quick Details

Capacitance :	16.5 pF	Series:	BDN
Manufacturer:	CTS Thermal Management Products	Type:	Top Mount
Package Cooled:	Assorted (BGA, LGA, CPU, ASIC...)	Attachment Method:	Thermal Tape, Adhesive (Included)
Shape:	Square, Pin Fins	Length:	1.610" (40.89mm)
Width:	1.610" (40.89mm)	Diameter:	-
Height Off Base (Height of Fin):	0.355" (9.02mm)	Power Dissipation @ Temperature Rise:	-
Thermal Resistance @ Forced Air Flow:	4.5°C/W @ 400 LFM	Thermal Resistance @ Natural:	13.5°C/W
Material:	Aluminum

Description

Diameter: -
Power Dissipation @ Temperature Rise: -
Material: Aluminum
Material Finish: Black Anodized
Manufacturer: CTS Thermal Management Products
Type: Top Mount
Series: BDN
Package Cooled: Assorted (BGA, LGA, CPU, ASIC...)
Shape: Square, Pin Fins
Height Off Base (Height of Fin): 0.355" (9.02mm)
Attachment Method: Thermal Tape, Adhesive (Included)
Thermal Resistance @ Forced Air Flow: 4.5°C/W @ 400 LFM
Length: 1.610" (40.89mm)
Width: 1.610" (40.89mm)
Thermal Resistance @ Natural: 13.5°C/W

Parameters:

Technical/Catalog Information	BDN16-3CB/A01
Vendor	CTS Thermal Management Products
Category	Fans, Thermal Management
Attachment Method	Thermal Tape, Adhesive (Included)
Height	0.35" (9mm)
Material	Aluminum
Package Cooled	Assorted (BGA, LGA, CPU, ASIC...)
Power Dissipation @ Temperature Rise	-
Thermal Resistance @ Forced Air Flow	4.5°C/W @ 400 LFM
Outline	40.89mm x 40.89mm
Thermal Resistance @ Natural	13.5°C/W
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	BDN16 3CB A01 BDN163CBA01 294 1103 ND 2941103ND 294-1103
