Product Details

Description



Features:

* High current (max. 3 A)
* Low voltage (max. 45 V).


Application

* General purpose medium power applications.

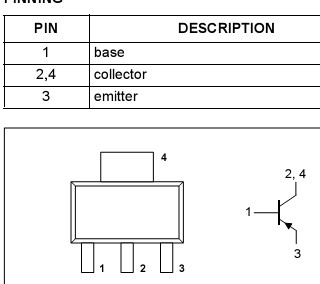

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCBO collector-base voltage open emitter - -45 V
VCEO collector-emitter voltage open base - -45 V
VEBO emitter-base voltage open collector - -5 V
IC collector current (DC)   - -3 mA
ICM peak collector current   - -6 A
IBM peak base current   - -0.5 A
Ptot total power dissipation Tamb 25 °C; note 1 - 1.35 W
Tstg storage temperature   -65 +150
Tj junction temperature   - 150
Tamb operating ambient temperature   -65 +150



Description

PNP medium power transistor BDP32 in a SOT223 plastic package. NPN complement: BDP31.
