Purchase BDS10, In-stock BDS10 From SeekIC.
Package Cooled:TO-220 D/C:NEW
- Table of contents:
BDS10
-
Suppliers
DataSheet
General Description
BDS10 Maximum Ratings
|
BDS10 |
BDS11 |
BDS12 | ||
| VCBO | Collector - Base voltage (IE = 0) |
60V |
80V |
100V |
| VCEO | Collector - Emitter voltage (IB = 0) |
60V |
80V |
100V |
| VEBO | Emitter - Base voltage (IC = 0) |
5V | ||
| IE,IC |
Emitter , Collector current |
15A | ||
| IB | Base current |
5A | ||
| Ptot | Total power dissipation at Tcase 75°C |
90W | ||
| Tstg | Storage Temperature |
65 to 200°C | ||
| Tj | Junction Temperature |
200°C | ||
BDS10 Features
* HERMETIC METAL OR CERAMIC PACKAGES
* HIGH RELIABILITY
* MILITARY AND SPACE OPTIONS
* SCREENING TO CECC LEVELS
* FULLY ISOLATED (METAL VERSION)
* HIGH RELIABILITY
* MILITARY AND SPACE OPTIONS
* SCREENING TO CECC LEVELS
* FULLY ISOLATED (METAL VERSION)
BDS10 Typical Application
* POWER LINEAR AND SWITCHING APPLICATIONS
* GENERAL PURPOSE POWER
* GENERAL PURPOSE POWER
BDS10
PDF/DataSheet Download
- Datasheet: BDS10
- File Size: 20883 KB
- Manufacturer: SEME-LAB [Seme LAB]
- Click here to Download
- ·BDS10IG
- SEME-LAB [Seme LAB]
- SILICON NPN EPITAXIAL BASE IN TO257 METAL PACKAGE
- 15159 KB
- ·BDS10SMD
- SEME-LAB [Seme LAB]
- SILICON NPN EPITAXIAL BASE IN TO220 METAL AND SMD1 CERAMIC SURFACE MOUNT PACKAGES
- 20883 KB
- ·BDS11
- SEME-LAB [Seme LAB]
- SILICON NPN EPITAXIAL BASE IN TO220 METAL AND SMD1 CERAMIC SURFACE MOUNT PACKAGES
- 20883 KB
- ·BDS11IG
- SEME-LAB [Seme LAB]
- SILICON NPN EPITAXIAL BASE IN TO257 METAL PACKAGE
- 15159 KB
- ·BDS11SMD
- SEME-LAB [Seme LAB]
- SILICON NPN EPITAXIAL BASE IN TO220 METAL AND SMD1 CERAMIC SURFACE MOUNT PACKAGES
- 20883 KB
- ·BDS12
- SEME-LAB [Seme LAB]
- SILICON NPN EPITAXIAL BASE IN TO220 METAL AND SMD1 CERAMIC SURFACE MOUNT PACKAGES
- 20883 KB
- ·BDS12IG
- SEME-LAB [Seme LAB]
- SILICON NPN EPITAXIAL BASE IN TO257 METAL PACKAGE
- 15159 KB
- ·BDS12SMD
- SEME-LAB [Seme LAB]
- SILICON NPN EPITAXIAL BASE IN TO220 METAL AND SMD1 CERAMIC SURFACE MOUNT PACKAGES
- 20883 KB
BDS10 Relative Products

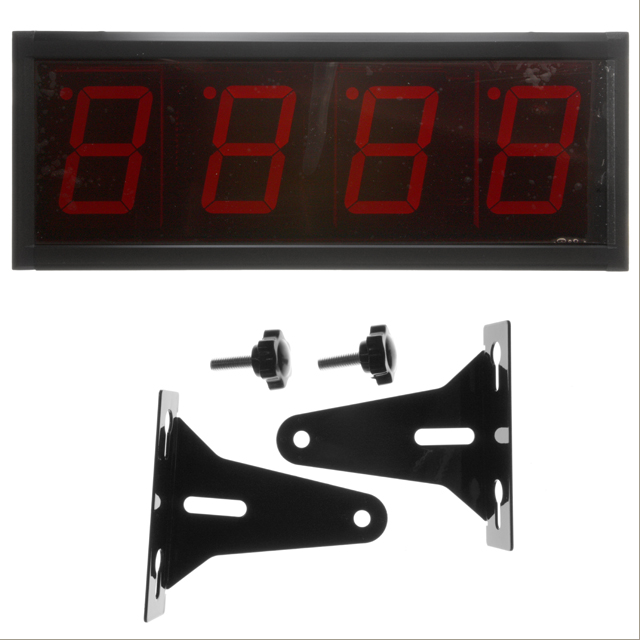

BDR-999R
VOLTMETER LRG 2.3" LED RED

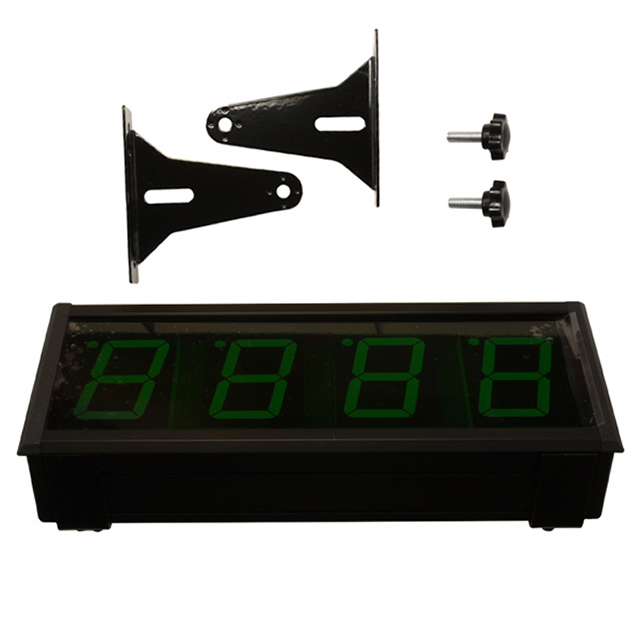

BDR-999G
VOLTMETER LRG 2.3" LED GRN

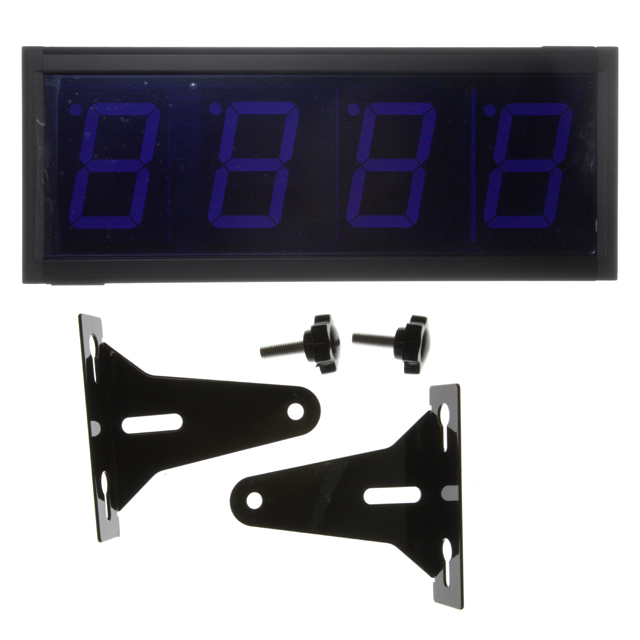

BDR-999B
