Part Number: BF1102



MFG: SOT-363

Package Cooled: PHILIPS

D/C: 05+

Description: The BF1102 is a combination of two equal dual gate MOS-FETs with shared source and gate 2 leads.The source and subs...


Urgent Purchase

BF1102 General Description


The BF1102 is a combination of two equal dual gate MOS-FETs with shared source and gate 2 leads.
The source and substrate are interconnected. An internal bias circuit enables DC stabilization and a very good cross-modulation performance at 5 V supply voltage. Integrated diodes between the gates and source protect against excessive input voltage surges. The transistor has a SOT363 micro-miniature plastic package.

BF1102 Features

• Two low noise gain controlled amplifiers in a single package
• Specially designed for 5 V applications
• Superior cross-modulation performance during AGC
• High forward transfer admittance
• High forward transfer admittance to input capacitance ratio.

BF1102 Typical Application

• Gain controlled low noise amplifier for VHF and UHF applications such as television tuners and professional communications equipment.

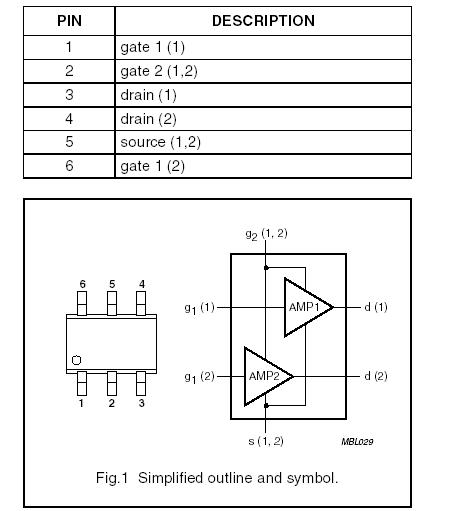

BF1102 Connection Diagram

BF1102 Connection Diagram
