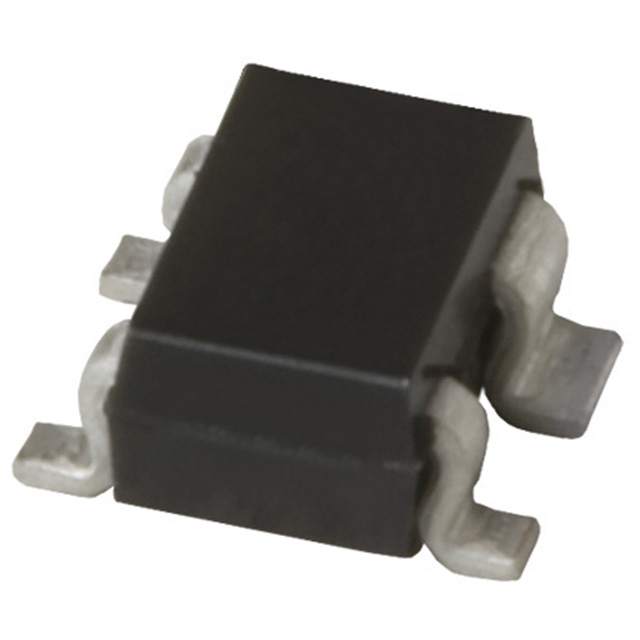

See larger image

SeekIC No. : 003435120 Detail

BFP520E6327: TRANS NPN RF 2.5V SOT-343

BFP520E6327 Data Sheet

Get Latest Price

Part Number:: BFP520E6327
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/6

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

BFP520 evaluate
BFP540F evaluate
Features: • For highest gain low noise amplifier at 1.8 GHz• Outstanding Gms = 20 dB N...
BFP540FE6327 evaluate
Transistors Bipolar (BJT) NPN 4.5 V 80 mA

Product Details

Quick Details

Series:	-	Manufacturer:	Infineon Technologies
Transistor Type:	NPN	Typical Resistor Ratio :	0.12
Voltage - Collector Emitter Breakdown (Max):	3.5V	Frequency - Transition:	45GHz
Noise Figure (dB Typ @ f):	0.95dB @ 1.8GHz	Gain:	24dB
Power - Max:	100mW	DC Current Gain (hFE) (Min) @ Ic, Vce:	70 @ 20mA, 2V
Current - Collector (Ic) (Max):	40mA	Mounting Type:	Surface Mount
Package / Case:	SC-82A, SOT-343	Supplier Device Package:	PG-SOT343-4

Description

Series: -
Transistor Type: NPN
Mounting Type: Surface Mount
Packaging: Tape & Reel (TR)
Gain: 24dB
Power - Max: 100mW
Package / Case: SC-82A, SOT-343
Current - Collector (Ic) (Max): 40mA
Frequency - Transition: 45GHz
Manufacturer: Infineon Technologies
Supplier Device Package: PG-SOT343-4
DC Current Gain (hFE) (Min) @ Ic, Vce: 70 @ 20mA, 2V
Voltage - Collector Emitter Breakdown (Max): 3.5V
Noise Figure (dB Typ @ f): 0.95dB @ 1.8GHz

Parameters:

Technical/Catalog Information	BFP520E6327
Vendor	Infineon Technologies
Category	Discrete Semiconductor Products
Frequency - Transition	45GHz
Noise Figure (dB Typ @ f)	0.95dB @ 1.8GHz
Current - Collector (Ic) (Max)	40mA
DC Current Gain (hFE) (Min) @ Ic, Vce	70 @ 20mA, 2V
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	2.5V
Gain	23.5dB
Power - Max	100mW
Compression Point (P1dB)	12dBm
Package / Case	SC-70-4, SC-82AB, SOT-323-4, SOT-343
Packaging	Tape & Reel (TR)
Drawing Number	*
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	BFP520E6327 BFP520E6327 BFP520INTR ND BFP520INTRND BFP520INTR
