Product Details

Description



Features:

* 4.8 V nominal supply voltage
* 3.2 W output power
* Easy control of output power by DC voltage.


Application

* Digital cellular radio systems with Time Division Multiple Access (TDMA) operation (GSM systems) in the 880 to 915 MHz frequency range.

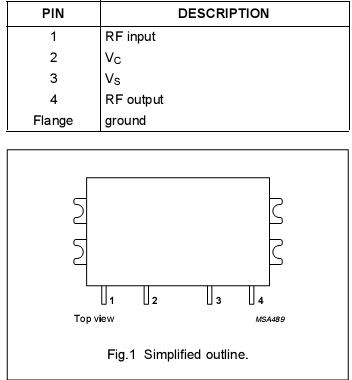

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VS DC supply voltage PL = 0  8 V
VC DC control voltage 4.5 V
PD input drive power 2 mW
PL load power VS 6.5 V; ZL = 50 4 W
Tstg storage temperature 40 100 C
Tmb operating mounting base temperature 30 100 C



Description

The BGY204 is a four-stage UHF amplifier module in a SOT321B package. The module consists of four NPN silicon planar transistor dies mounted together with matching and bias circuit components on a metallized ceramic substrate.
