Part Number: BGY206



MFG: Philips





Description: The BGY206 is a three-stage UHF amplifier module in a SOT388B package. The module consists of three NPN silicon planar ...


Urgent Purchase

BGY206 General Description


The BGY206 is a three-stage UHF amplifier module in a SOT388B package. The module consists of three NPN silicon planar transistor dies mounted together with matching and bias circuit components on a metallized ceramic substrate.

BGY206 Maximum Ratings

SYMBOL PARAMETER MIN. MAX. UNIT
VS DC supply voltage 7 V
Vc DC supply voltage 5.5 V
PD input drive power 2.7 mW
PL load power 10 W
Tstg storage temperature -40 136 C
Tmb operating mounting-base temperature -30 100 C

BGY206 Features

* 4.8 V nominal supply voltage
* 3 W output power
* Easy control of output power by DC voltage.

BGY206 Typical Application

* Digital cellular radio systems with Time Division Multiple Access (TDMA) operation (GSM systems) in the 880 to 915 MHz frequency range.

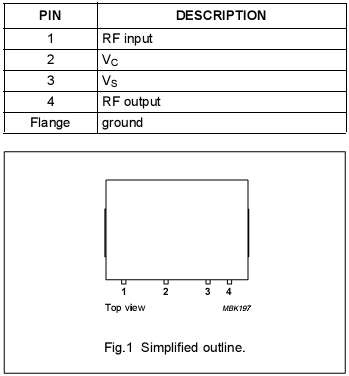

BGY206 Connection Diagram

BGY206 Connection Diagram

BGY206 datasheet

BGY206
PDF/DataSheet Download

Find BGY206 Suppliers
