Part Number: BGY212A









Description: The BGY212A is a three-stage UHF amplifier module in a SOT482C leadless package with a plastic cover. The module ...


Urgent Purchase

BGY212A General Description


The BGY212A is a three-stage UHF amplifier module in a SOT482C leadless package with a plastic cover. The  module consists of one NPN silicon planar transistor die  and one bipolar monolithic integrated circuit mounted  together with matching and bias circuit components on a  metallized ceramic substrate.

BGY212A Maximum Ratings

SYMBOL PARAMETER MIN. MAX. UNIT
VS DC supply voltage 7 V
Vc DC supply voltage 5.5 V
PD input drive power 2.7 mW
PL load power 10 W
Tstg storage temperature -40 136 C
Tmb operating mounting-base temperature -30 100 C

BGY212A Features

* 3.5 V nominal supply voltage
* 2 W output power
* Easy output power control by DC voltage.

BGY212A Typical Application

* Digital cellular radio systems with Time Division Multiple  Access (TDMA) operation (GSM systems) in the  1710 to 1785 MHz frequency range.

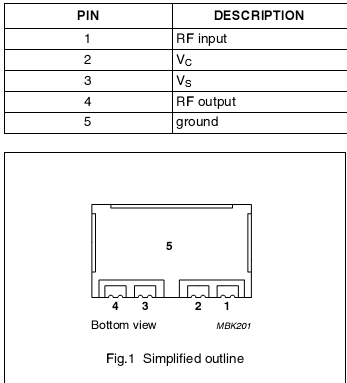

BGY212A Connection Diagram
