BGY280

Features: * Dual band GSM amplifier* 3.6 V nominal supply voltage* 33.5 dBm output power for GSM1800* 35.5 dBm output power for GSM900* Easy output power control by DC voltage.* Internal input and output matching.Application* Digital cellular radio systems with Time Division Multiple Access (TDMA)...

product image

BGY280 Picture
See larger image
SeekIC No. : 004300228 Detail

BGY280: Features: * Dual band GSM amplifier* 3.6 V nominal supply voltage* 33.5 dBm output power for GSM1800* 35.5 dBm output power for GSM900* Easy output power control by DC voltage.* Internal input and o...

BGY280 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BGY280
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Dual band GSM amplifier
* 3.6 V nominal supply voltage
* 33.5 dBm output power for GSM1800
* 35.5 dBm output power for GSM900
* Easy output power control by DC voltage.
* Internal input and output matching.


Application

* Digital cellular radio systems with Time Division Multiple  Access (TDMA) operation (GSM systems) in two frequency bands: 880 to 915 MHz and   1710 to 1785 MHz.

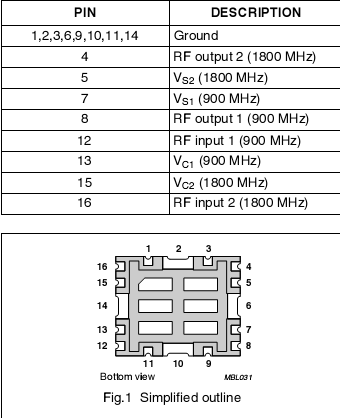

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

VS1, VS2

 DC supply voltage VC 1,2 =0; RFIN =off
VC 1,2 > 0.5 V; RFIN =on		 7
5.5		 V
VC1, VC2 DC control voltage 3 V
PD1, PD2 input drive power 10 MW
PL1 load power 1 4 W
PL2 load power 2 3 W
Tstg storage temperature -40 3
100
Tmb operating mounting base temperature -40 100



Description

The BGY280 is a power amplifier module in a SOT559A  leadless package with a plastic cap. The dimensions are
13.75 x 11 x 1.7 mm. The module consists of two  separated line-ups. One for GSM900 and one for  GSM1800. Internal power control, input and output  matching.
