Purchase BH6948GU-E2, In-stock BH6948GU-E2 From SeekIC.

MFG:Rohm Semiconductor(VA) Category:Integrated Circuits (ICs)

BH6 Series Datasheet download

Five Points

Part Number: BH6948GU-E2

Category: Integrated Circuits (ICs)

MFG: Rohm Semiconductor(VA)

Descriptions: IC LED DRVR WHITE BCKLGT 62-VCSP

Price Break

1
25
100
1000

Unit Price

6.70000
5.36000
4.52250
4.18750

Extended Price

6.70
134.00
452.25
4187.50

(All prices are in USD) Prices for reference only

BH6948GU-E2 General Description

IC LED DRVR WHITE BCKLGT 62-VCSP

BH6948GU-E2 Parameters

Technical/Catalog Information	BH6948GU-E2
Vendor	Rohm Semiconductor(VA)
Category	Integrated Circuits (ICs)

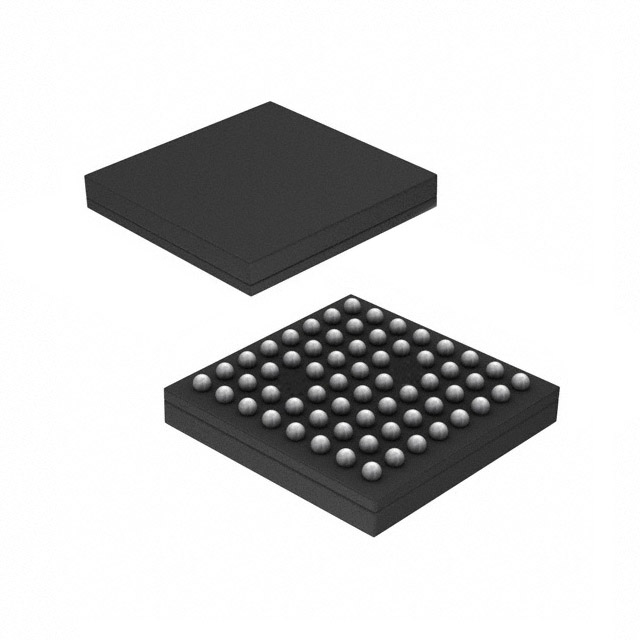

Package / Case	62-VCSP
Packaging	Digi-Reel?
Current - Output / Channel	-
Number of Outputs	7
Type	Backlight, White LED
Voltage - Supply	-
Voltage - Output	-
Topology	Switched Capacitor (Charge Pump)
Frequency	1.2MHz
Operating Temperature	-30°C ~ 85°C
Efficiency	-
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	BH6948GU E2 BH6948GUE2 BH6948GU E2DKR ND BH6948GUE2DKRND BH6948GU-E2DKR
