Part Number: BH7236AF



MFG: ROHM

Package Cooled: SOP24P

D/C: 05+

Description: The BH7236AF converts analog RGB signals into color TV signals in the NTSC and PAL formats. From inputs of analog RGB s...


Urgent Purchase

BH7236AF General Description


The BH7236AF converts analog RGB signals into color TV signals in the NTSC and PAL formats. From inputs of analog RGB signals, a composite synch signal, burst pulses and a color carrier, this IC generates a color TV signal, and can be adapted for either NTSC or PAL standards, which are selected externally. When set to PAL, chroma phase is switched for each line. The chroma signals and luminosity signals can be combined into a color TV signal or output separately, making this IC suitable for S pins. There are also pins for analog RGB signal output, and each output pin has its own internal
75W driver.

BH7236AF Maximum Ratings

Parameter Symbol Limits Unit
Power supply voltage Vcc 7.0 V
Power dissipation Pd 550* mW
Operating temperature Topr 20 ~  + 70 °C
Storage temperature Tstg 55 ~  + 125 °C

BH7236AF Features

1) Can be adapted for NTSC and PAL formats.
2) Internal burst timing signal generator with half-H killer.
3) Internal flip-flop for PAL phase switching.
4) Separate Y / C output pins.
5) Analog RGB signal output pins.
6) Internal 75W driver. (outputs color TV signals, luminosity signals, chroma signals and analog RGB signals)
7) Adaptable for color subcarrier pulse input.

BH7236AF Typical Application

TV peripherals

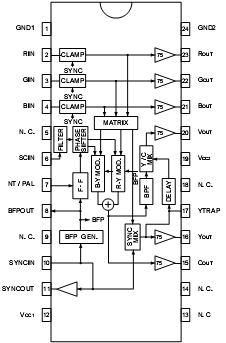

BH7236AF Connection Diagram

BH7236AF Connection Diagram
