BH7273KV

Features: 1) Enables the configuring of all pass filters, 1 + D circuits, and transversal filters (TVF).2) Built-in VCA, amplifier, buffer, and mixer amplifier.3) Detects the ATF pilot signal and generates an ATF error signal.4) Built-in 1.5MHz LPF, VCA, 465kHz BPF, 697.5kHz BPF, 25dB amplifier, p...

product image

BH7273KV Picture
See larger image
SeekIC No. : 004300392 Detail

BH7273KV: Features: 1) Enables the configuring of all pass filters, 1 + D circuits, and transversal filters (TVF).2) Built-in VCA, amplifier, buffer, and mixer amplifier.3) Detects the ATF pilot signal and ge...

BH7273KV Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BH7273KV
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

1) Enables the configuring of all pass filters, 1 + D circuits, and transversal filters (TVF).
2) Built-in VCA, amplifier, buffer, and mixer amplifier.
3) Detects the ATF pilot signal and generates an ATF error signal.
4) Built-in 1.5MHz LPF, VCA, 465kHz BPF, 697.5kHz BPF, 25dB amplifier, peak detector, and subtractor.
5) Intermediate frequencies are variable by controlling the voltages for the 465kHz BPF and 697.5kHz BPF.


Application

Equalizers and ATFs for digital VCRs


Pinout

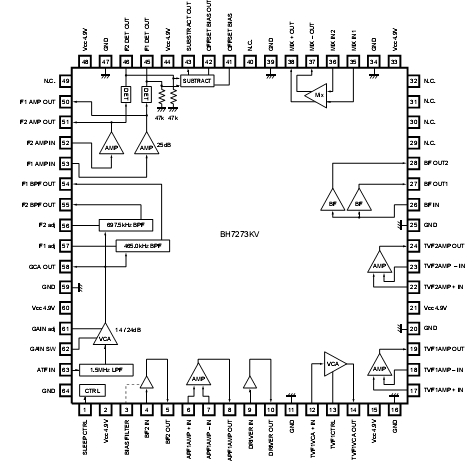

Connection Diagram


Specifications

Parameter Symbol Limits Unit
Applied voltage Vcc 7.0 V
Power dissipation Pd * 1000 mW
Operating temperature Topr 20 ~  + 65 °C
Storage temperature Tstg 55 ~  + 125 °C



Description

The BH7273KV is an equalizer and ATF circuit IC developed for use with digital video cassettes (DVC). By using this IC, it is simple to design the filter for the equalizer required for DVD sets. In addition, the ATF circuit detects the pilot signals and generates error signals.
