BL8531H_ADC

Features: · Resolution : 12bit· Maximum Conversion Rate : 10MHz· Power Supply : 5V· Power Consumption : 100mW (typical)· Reference Voltage : 3.5V, 1.5V (dual reference)· Input Range : 0.5V ~ 4.5V (4.0VP-P)· Differential Linearity Error : ±0.7 LSB· Integral Linearity Error : ±1.0 LSB· Signal to Noi...

product image

BL8531H_ADC Picture
See larger image
SeekIC No. : 004300520 Detail

BL8531H_ADC: Features: · Resolution : 12bit· Maximum Conversion Rate : 10MHz· Power Supply : 5V· Power Consumption : 100mW (typical)· Reference Voltage : 3.5V, 1.5V (dual reference)· Input Range : 0.5V ~ 4.5V (4...

BL8531H_ADC Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BL8531H_ADC
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Resolution : 12bit
· Maximum Conversion Rate : 10MHz
· Power Supply : 5V
· Power Consumption : 100mW (typical)
· Reference Voltage : 3.5V, 1.5V (dual reference)
· Input Range : 0.5V ~ 4.5V (4.0VP-P)
· Differential Linearity Error : ±0.7 LSB
· Integral Linearity Error : ±1.0 LSB
· Signal to Noise & Distortion Ratio : 65dB
· Total Harmonic Distortion : 74dB
· 3 Channel Inputs
· Digital Output : CMOS Level
- Operating Temperature Range : 0ºC ~ 70ºC


Application

·CCD Imaging (Copiers, Scanners, Cameras)
·Medical Instruments
·Digital Communication Systems

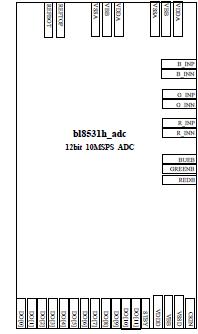

Pinout

Connection Diagram


Specifications

Characteristics
Symbol
Value
Unit
Supply voltage
VDD
6.0
V
Analog Input Voltage R_INP/R_INN
G_INP/G_INN
B_INP/B_INN
VSS to VDD
V
Digital Input Voltage
CLK
VSS to VDD
V
Operating temperature range
Tstg
-45 to 150
Storage temperature range
Topr
0 to 70

NOTES
1. Absolute maximum rating specifies the values beyond which the device may be damaged permanently. Exposure to
ABSOLUTE MAXIMUM RATING conditions for extended periods may affect reliability. Each condition value is applied with the other values kept within the following operating conditions and function operation under any of these conditions is not implied.
2. All voltages are measured with respect to VSS unless otherwise specified.
3. 100pF capacitor is discharged through a 1.5k resistor (Human body model)


Description

The BL8531H_ADC is a CMOS 12bit analog-to-digital converter (ADC). It converts the analog input signal into 12bit binary digital codes at a maximum sampling rate of 10MHz.

The BL8531H_ADC is a monolithic ADC with an on-chip, high-performance, sample-and-hold Amplifier (SHA) and current referenc. The structure allows both  differential and single-ended input. This 12bit ADC has also 3 channel MUX, so 3 channel inputs are acceptable
