Purchase BLF1822-10, In-stock BLF1822-10 From SeekIC.
MFG:PHILIPS D/C:N/A
Part Number: BLF1822-10
MFG: PHILIPS
D/C: N/A
Description: 10 W LDMOS power transistor for base station applications at frequencies from HF to 2200 MHz.
- Table of contents:
BLF1822-10
-
Suppliers
DataSheet
General Description
BLF1822-10 General Description
10 W LDMOS power transistor for base station applications at frequencies from HF to 2200 MHz.
BLF1822-10 Maximum Ratings
| SYMBOL | PARAMETER | CONDITIONS | MIN. | MAX. | UNIT |
| VDS | drain-source voltage | 65 | V | ||
| VGS | gate-source voltage | ±15 | V | ||
| ID | DC drain current | 2.2 | A | ||
| Tstg | storage temperature | -65 | 150 | C | |
| Tj | junction temperature | 200 | C | ||
BLF1822-10 Features
* Typical 2-tone performance at a supply voltage of 26 V and IDQ of 85 mA:
Output power = 10 W (PEP)
Gain = 18.5 dB at 900 MHz, 13.5 dB at 2200 MHz
Efficiency = 39% at 900 MHz, 34% at 2200 MHz
dim = -31 dBc at 900 MHz, -28 dBc at 2200 MHz
* Easy power control
* Excellent ruggedness
* High power gain
* Excellent thermal stability
* Designed for broadband operation (HF to 2200 MHz)
* No internal matching for broadband operation.
Output power = 10 W (PEP)
Gain = 18.5 dB at 900 MHz, 13.5 dB at 2200 MHz
Efficiency = 39% at 900 MHz, 34% at 2200 MHz
dim = -31 dBc at 900 MHz, -28 dBc at 2200 MHz
* Easy power control
* Excellent ruggedness
* High power gain
* Excellent thermal stability
* Designed for broadband operation (HF to 2200 MHz)
* No internal matching for broadband operation.
BLF1822-10 Typical Application
* RF power amplifiers for GSM, EDGE, CDMA and W-CDMA base stations and multicarrier applications in the HF to 2200 MHz frequency range
* Broadcast drivers.
* Broadcast drivers.

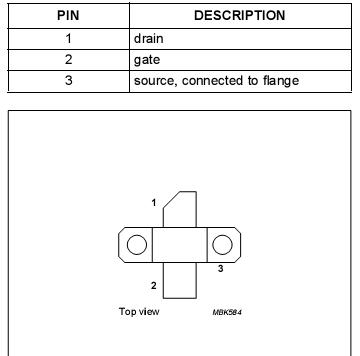

BLF1822-10 Connection Diagram
BLF1822-10
