BLF2022-30

Features: * Typical W-CDMA performance at a supply voltage of 28 V and IDQ of 240 mA: Output power = 3.5 W (AV) Gain = 12.9 dB Efficiency = 16.5% ACPR = -45 dBc at 3.84 MHzdim = -42 dBc* Easy power control* Excellent ruggedness* High power gain* Excellent thermal stability* Designed for broadband ...

product image

BLF2022-30 Picture
See larger image
SeekIC No. : 004300545 Detail

BLF2022-30: Features: * Typical W-CDMA performance at a supply voltage of 28 V and IDQ of 240 mA: Output power = 3.5 W (AV) Gain = 12.9 dB Efficiency = 16.5% ACPR = -45 dBc at 3.84 MHzdim = -42 dBc* Easy power ...

BLF2022-30 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BLF2022-30
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Typical W-CDMA performance at a supply voltage of 28 V and IDQ of 240 mA:
Output power = 3.5 W (AV)
Gain = 12.9 dB
Efficiency = 16.5%
ACPR = -45 dBc at 3.84 MHz
dim = -42 dBc
* Easy power control
* Excellent ruggedness
* High power gain
* Excellent thermal stability
* Designed for broadband operation (2000 to 2200 MHz)
* Internally matched for ease of use.


Application

* RF power amplifiers for W-CDMA base stations and multicarrier applications in the 2000 to 2200 MHz frequency range.


Pinout

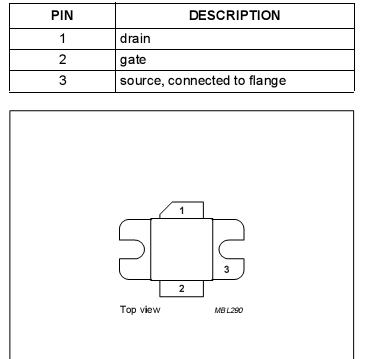

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VDS drain-source voltage 65 V
VGS gate-source voltage ±15 V
ID DC drain current 4.5 A
Tstg storage temperature -65 150 C
Tj junction temperature 200 C



Description

30 W LDMOS power transistor BLF2022-30 for base station applications at frequencies from 2000 to 2200 MHz.
