Purchase BLF2047, In-stock BLF2047 From SeekIC.
MFG:PHILIP
Part Number: BLF2047
MFG: PHILIP
Description: Silicon N-channel enhancement mode lateral D-MOS transistor encapsulated in a 2-lead flange SOT502A package with a cera...
- Table of contents:
BLF2047
-
Suppliers
DataSheet
General Description
BLF2047 General Description
Silicon N-channel enhancement mode lateral D-MOS transistor encapsulated in a 2-lead flange SOT502A package with a ceramic cap. The common source is connected to the mounting flange.
BLF2047 Maximum Ratings
| SYMBOL | PARAMETER | CONDITIONS | MIN. | MAX. | UNIT |
| VDS | drain-source voltage | 65 | V | ||
| VGS | gate-source voltage | ±15 | V | ||
| ID | DC drain current | 9 | A | ||
| Tstg | storage temperature | -65 | 150 | C | |
| Tj | junction temperature | 200 | C | ||
BLF2047 Features
* High power gain
* Easy power control
* Excellent ruggedness
* Source on underside eliminates DC isolators, reducing common mode inductance
* Designed for broadband operation (1.8 to 2.2 GHz).
* Internal input and output matching for high gain and efficiency
* Easy power control
* Excellent ruggedness
* Source on underside eliminates DC isolators, reducing common mode inductance
* Designed for broadband operation (1.8 to 2.2 GHz).
* Internal input and output matching for high gain and efficiency
BLF2047 Typical Application
* Common source class-AB operation for PCN and PCS applications in the 1800 to 2200 MHz frequency range.

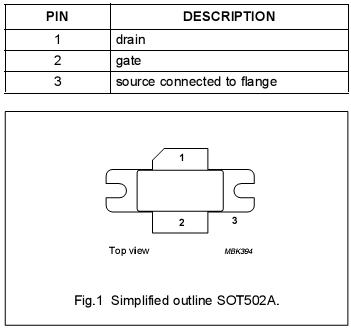

BLF2047 Connection Diagram
BLF2047
