BLF247B

Features: * High power gain* Easy power control* Good thermal stability* Withstands full load mismatch.Application* Large signal applications in the VHF frequency range.PinoutSpecifications SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT VDS drain-source voltage 65 V...

product image

BLF247B Picture
See larger image
SeekIC No. : 004300557 Detail

BLF247B: Features: * High power gain* Easy power control* Good thermal stability* Withstands full load mismatch.Application* Large signal applications in the VHF frequency range.PinoutSpecifications ...

BLF247B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BLF247B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* High power gain
* Easy power control
* Good thermal stability
* Withstands full load mismatch.


Application

* Large signal applications in the VHF frequency range.

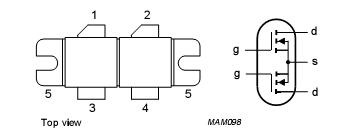

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VDS drain-source voltage 65 V
VGS gate-source voltage ±20 V
ID DC drain current 13 A
Ptot total power dissipation up to Tmb = 25  C; total device;both sections equally loaded 280 W
Tstg storage temperature -65 +150 C
Tj junction temperature +200 C



Description

Silicon N-channel enhancement mode vertical D-MOS push-pull transistor BLF247B encapsulated in a 4-lead, SOT262A1 balanced flange type package with two ceramic caps. The mounting flange provides the common source connection for the transistor.
