Part Number: BLV33



MFG: N/A

Package Cooled: NA/

D/C: 09+

Description: NPN silicon planar epitaxial transistor encapsulated in a 1/16" 4 fslead SOT147 capstan package with ceramic cap. All l...


Urgent Purchase

BLV33 General Description


NPN silicon planar epitaxial transistor encapsulated in a 1/16" 4 fslead SOT147 capstan package with ceramic cap. All leads are isolated from the stud.

BLV33 Maximum Ratings

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCBO collector-base voltage open emitter 65 V
VCES collector-emitter voltage open base  33 V
VEBO emitter-base voltage open collector 4 V
IC collector current 12.5 A
IC(AV) collector current 12.5 A
ICM collector current  f > 1 MHz 20 A
Ptot total power dissipation f > 1 MHz;Ts = 103 °C
(note 1)		 165 W
Tstg storage temperature -65 +150
Tj operating junction temperature 200

BLV33 Features

* Diffused emitter ballasting resistors for an optimum temperature profile
* Gold sandwich metallization ensures excellent reliability.

BLV33 Typical Application

* Primarily intended for use in linear VHF amplifiers for television transmitters and transposers.

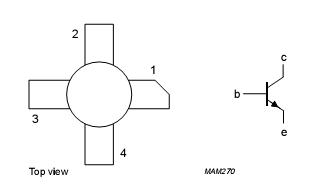

BLV33 Connection Diagram
