BLV861

Features: * Double stage internal input and output matching networks for an optimum wideband capability and high gain* Polysilicon emitter ballasting resistors for an optimum temperature profile* Gold metallization ensures excellent reliability.Application* Common emitter class-AB output stages of...

product image

BLV861 Picture
See larger image
SeekIC No. : 004300692 Detail

BLV861: Features: * Double stage internal input and output matching networks for an optimum wideband capability and high gain* Polysilicon emitter ballasting resistors for an optimum temperature profile* Go...

BLV861 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BLV861
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Double stage internal input and output matching networks for an optimum wideband capability and high gain
* Polysilicon emitter ballasting resistors for an optimum temperature profile
* Gold metallization ensures excellent reliability.


Application

* Common emitter class-AB output stages of television transmitter amplifiers (sound and vision) operating in bands 4 and 5 (470 to 860 MHz).


Pinout

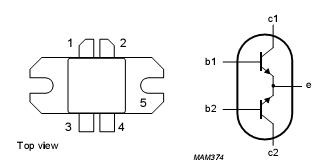

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCBO collector-base voltage open emitter 65 V
VCES collector-emitter voltage open base  30 V
VEBO emitter-base voltage open collector 3 V
IC collector current(DC) 15 A
Ptot total power dissipation Tmb =70 °C; note 1; see Fig.2 220 W
Tstg storage temperature -65 +150
Tj operating junction temperature 200



Description

NPN silicon planar epitaxial transistor BLV861 with two sections in push-pull configuration. The device is encapsulated in a SOT289A 4-lead rectangular flange package, with a ceramic cap.
