Features: * Double stage internal input and output matching networks for an optimum wideband capability and high gain* Polysilicon emitter ballasting resistors for an optimum temperature profile* Gold metallization ensures excellent reliability.Application* Common emitter class-AB operation in out...
BLV862: Features: * Double stage internal input and output matching networks for an optimum wideband capability and high gain* Polysilicon emitter ballasting resistors for an optimum temperature profile* Go...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
SYMBOL | PARAMETER | CONDITIONS | MIN. | MAX. | UNIT |
VCBO | collector-base voltage | open emitter | 65 | V | |
VCES | collector-emitter voltage | open base | 30 | V | |
VEBO | emitter-base voltage | open collector | 3 | V | |
IC | peak collector current | 25 | A | ||
Ptot | total power dissipation | Tmb =20 | 350 | W | |
Tstg | storage temperature | -65 | +150 | ||
Tj | operating junction temperature | 200 |
The BLV862 is designed as one kind of UHF linear push-pull power transistor which produced by Philips Semiconductors with three features:(1)gold metallization ensures excellent reliability;(2)polysilicon emitter ballasting resistors for an optimum temperature profile;(3)double stage internal input and output matching networks for an optimum wideband capability and high gain.It can be used in common emitter class-AB operation in output stages in bands 4 and 5 (470 to 860 MHz) television transmitter amplifiers (vision or sound).

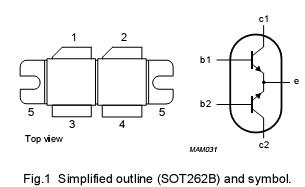

And the BLV862 has two sections in push-pull configuration.The device is encapsulated in a SOT262B 4-lead rectangular flange package,with two ceramic caps.The absolute maximum rating can be summarized as:(1)collector-base voltage:65 V;(2)collector-emitter voltage:30 V;(3)emitter-base voltage:3 V;(4)collector current (DC):25 A;(5)total power dissipation:350 W;(6)storage temperature:-65 +150°C;(7)operating junction temperature:200 °C;(8)thermal resistance from junction to mounting base:0.5 K/W;(9)thermal resistance from mounting base to heatsink:0.15 K/W.Note:thermal resistance is determined under specified RF operating conditions.If you want to know more information such as the electrical characteristics about the BLV862,please download the datasheet in www.seekdatasheet.com .
