Product Details

Description



Features:

* Internal input and output matching for easy matching,high gain and efficiency
* Poly-silicon emitter ballasting resistors for an optimum temperature profile
* Gold metallization ensures excellent reliability.


Application

* Base station transmitters in the 800 to 960 MHz range.

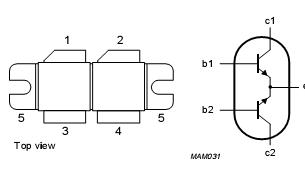

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCBO collector-base voltage open emitter 70 V
VCES collector-emitter voltage open base  30 V
VEBO emitter-base voltage open collector 3 V
IC collector current DC or average value 12 A
ICM collector current peak value f > 1 MHz 12 A
Ptot total power dissipation f > 1 MHz;Ts = 103 °C
(note 1)		 340 W
Tstg storage temperature -65 +150
Tj operating junction temperature 200



Description

Two NPN silicon planar epitaxial transistors BLV950 in push-pull configuration, intended for linear common emitter class-AB operation. The transistors BLV950 are encapsulated in a 4-lead SOT262A2 flange package with 2 ceramic caps. The flange provides the common emitter connection for both transistors.
