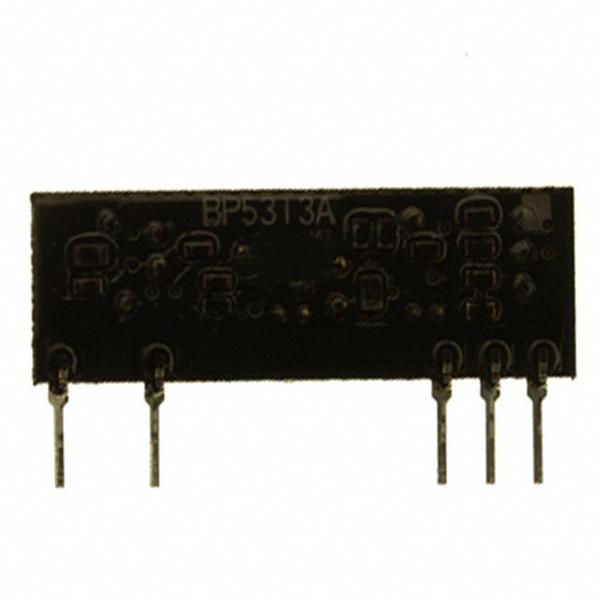

BP5313A

Dropout Voltage (Max) :
Load Regulation :
Number of Outputs :
Output Type :
Mounting Style : Through Hole
Output Voltage : 40 V
Input Voltage MAX : 12.6 Volts
Output Current : 60 mA
Maximum Operating Temperature : + 60 C
Package / Case : SIP-11


Features:

1) High efficient power conversion (83%).
2) Internal short-circuit protection.
3) Low height makes this product ideal for thin-panel sets.


Application

LCD panels for copier, facsimile, instrument, personal computers, word processors, and other equipment;  LCD display units


Specifications

Parameter	Symbol	Limits	Unit
power supply voltage	Vin	15	V
Operating temperature range	Topr	0~+60	°C
Storage temperature range	Tstg	−30~+85	°C

Description

The BP5313A is a DC/DC converter designed to drive LCD panels. Using this module it easy to supply a +40V  power supply from a 12V power supply to drive an LCD.


Parameters:

Technical/Catalog Information	BP5313A
Vendor	Rohm Semiconductor
Category	Integrated Circuits (ICs)
Package / Case	11-SIP (5 Lead)
Packaging	Tray
Type	DC/DC Converter
Voltage - Input	11.4 ~ 12.6 V
Voltage - Output	40V
Number of Outputs	1
Applications	Converter, LCD
Operating Temperature	0°C ~ 60°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	BP5313A BP5313A
