MFG:ROHM  Package Cooled:SOP  D/C:0203

BR24L32F-W Product Image

BR2 Series Datasheet download

Five Points

Part Number: BR24L32F-W



MFG: ROHM

Package Cooled: SOP

D/C: 0203



Urgent Purchase

BR24L32F-W Maximum Ratings

Parameter
Symbol
Limits
Unit
Supply voltage
VCC
-0.3 to +6.5
V
Power dissipation
Pd
800(DIP8) *1
mW
450(SOP8) *2
450(SOP-J8) *2
300(SSOP-B8) *3
310(MSOP8) *4
Storage temperature
Tstg
-65 to +125
°C
Operating temperature
Topr
-40 to +85
°C
Terminal voltage
-
-0.3 to VCC+0.3
V

*1     Degradation is done at 8.0mW/°C for operation above 25°C.
*2,3  Degradation is done at 4.5mW/°C for operation above 25°C.
*4     Degradation is done at 3.0mW/°C for operation above 25°C.

BR24L32F-W Features

 1) 4k registers * 8 bits serial architecture.
 2) Single power supply (1.8V to 5.5V).
 3) Two wire serial interface.
 4) Automatic erase.
 5) 32byte Page Write Mode.
 6) Low power consumption.
     Write     (5V) : 1.5mA (Typ.)
     Read   (5V) : 0.2mA (Typ.)
     Standby (5V) : 0.1A (Typ.)
 7) DATA security
     Write protect feature (WP pin).
     Inhibit to WRITE at low VCC.
 8) Small package - - - DIP8 / SOP8 / SSOP-B8 pin
 9) High reliability EEPROM with Double-Cell structure.
10) High reliability fine pattern CMOS technology.
11) Endurance : 1,000,000 erase / write cycles
12) Data retention : 40 years
13) Filtered inputs in SCL,SDA for noise suppression.
14) Initial data FFh in all address.

BR24L32F-W Typical Application

General purpose

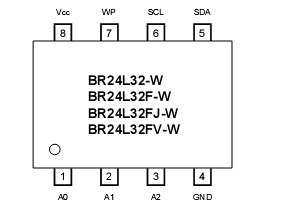

BR24L32F-W Connection Diagram

BR24L32F-W Connection Diagram
