Product Details

Description



Pinout

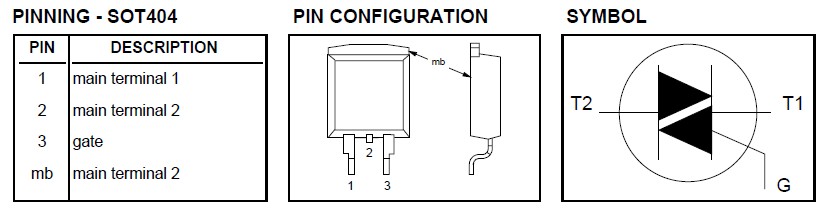

Connection Diagram


Specifications

SYMBOL PARAMETER

CONDITIONS

MIN.

MAX.

UNIT

VDRM
IT(RMS)
ITSM
I2t
dIT/dt
IGM
VGM
PGM
PG(AV)
Tstg
Tj

 Repetitive peak off-state voltages
RMS on-state current
Non-repetitive peak
on-state current
I2t for fusing
Repetitive rate of rise of
on-state current after
triggering
Peak gate current
Peak gate voltage
Peak gate power
Average gate power
Storage temperature
Operating junction temperature		 full sine wave; Tmb 111 °C
full sine wave; Tj = 25 °C prior to surge
t = 10 ms
t = 8.3 ms
t = 10 ms
ITM = 10 A; IG = 50 A;
dIG/dt = 50 A/ms
T2+ G+
T2+ G-
T2- G-
T2- G+
over any 20 ms period

-
-
-
-
-
-
-
-
-
-
-
-
-
-40
-

-500
5001

 -600
6001		 -800
8001

V
A
A
A
A2s
A/s
A/s
A/s
A/s
A
V
W
W

8
65
71
21
50
50
50
10
2
5
5
0.5
150
125




Description

Glass passivated, sensitive gate triacs BT137B inaplasticenvelopesuitablefor surfacemounting,intendedforusein general purpose bidirectional switching and phase control applications,where high sensitivityis required in all four quadrants.
