Part Number:: BT138F
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

BT1306-400D evaluate
Triacs THYR AND TRIACS
BT1306-400D,412 evaluate
Triacs THYR AND TRIACS
BT1306-600D evaluate
Triacs THYR AND TRIACS

Product Details

Description

Pinout

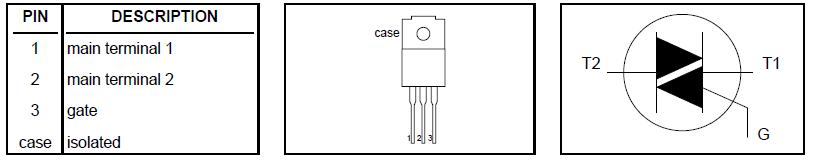

Connection Diagram

Specifications

SYMBOL	PARAMETER	CONDITIONS		MIN.	MAX.			UNIT
V_DRM	Repetitive peak off-state voltages			-	-500 500¹	-600 600¹	-800 800	V
I_T(RMS)	RMS on-state current	full sine wave; T_hs 56 °C		-	12			A
I_TSM	Non-repetitive peak on-state current	full sine wave; T_j= 125 °C prior to surge; with reapplied V_DRM(max)
		t = 20 ms t = 16.7 ms		- -	90 100			A A
I²t	I²t for fusing	t = 10 ms		-	40			A²s
dI_T/dt	Repetitive rate of rise of on-state current after triggering	I_TM = 20 A; I_G = 0.2 A; dI_G/dt = 0.2 A/s
			T2+ G+ T2+ G- T2- G- T2- G+	- - - -	50 50 50 10			A/s A/s A/s A/s
I_GM	Peak gate current			-	2			A
V_GM	Peak gate voltage			-	5			V
P_GM	Peak gate power	over any 20 ms period		-	5			W
P_G(AV)	Average gate power			-	0.5			W
T_stg	Storage temperature			-40	150			°C
T_j	Operating junction temperature			-	125			°C

Description

Glass passivated triacs BT138F in a full pack plastic envelope, intended for use in applications requiring high bidirectional transient and blocking voltage capability and high thermal cycling performance. Typical applications of v include motor control, industrial and domestic lighting, heating and static switching.
