Parameter	Symbol	Values	Unit
Drain-source voltage	V_DS	100	V
Drain-gate voltage, R_GS = 20 k	V_DGR	100
Gate-source voltage	V_GS	± 20
Continuous drain current, T_C = 25 °C	I_D	19	A
ISO drain current T_C = 85 °C, V_GS = 10 V, V_DS = 0.5 V	I_D-ISO	3.5
Pulsed drain current, T_C = 25 °C	I_{D puls}	76
Short circuit current, T_j = 55 ... + 150 °C	I_SC	55
Short circuit dissipation, T_j = 55 ... + 150 °C	P_SCmax	800	W
Power dissipation	P_tot	75	W
Operating and storage temperature range	T_j, T_stg	55 ... + 150	°C
DIN humidity category, DIN 40 040		E
IEC climatic category, DIN IEC 68-1		55/150/56
Thermal resistance Chip-case Chip-ambient	R_{th JC} R_{th JA}	1.67 75	K/W

N channel
Enhancement mode
Temperature sensor with thyristor characteristic
The drain pin is electrically shortet to the tab

BTS120
PDF/DataSheet Download

·BTS100
SIEMENS [Siemens Semiconductor Group]
Smart Highside Power Switch TEMPFET (P channel Enhancement mode Temperature sensor with thyristor characteristic)
447180 KB
·BTS110
INFINEON [Infineon Technologies AG]
TEMPFET(N-channel Enhancement mode Temperature sensor with thyristor characteristic)
574041 KB
·BTS112
SIEMENS [Siemens Semiconductor Group]
TEMPFET (N channel Enhancement mode Temperature sensor with thyristor characteristic)
327460 KB
·BTS112A
INFINEON [Infineon Technologies AG]
TEMPFET(N-channel Enhancement mode Temperature sensor with thyristor characteristic)
593185 KB
·BTS113
SIEMENS [Siemens Semiconductor Group]
TEMPFET (N channel Logic level Enhancement mode Temperature sensor with thyristor characteristic)
316535 KB
·BTS113A
INFINEON [Infineon Technologies AG]
TEMPFET(N-channel Logic level Enhancement mode Temperature sensor with thyristor characteristic)
561964 KB
·BTS114
INFINEON [Infineon Technologies AG]
TEMPFET(N channel Enhancement mode Temperature sensor with thyristor characteristic)
589015 KB
·BTS114A
INFINEON [Infineon Technologies AG]
TEMPFET(N channel Enhancement mode Temperature sensor with thyristor characteristic)
589015 KB

BTS118D
N channel vertical power FET BTS118Din Smart SIPMOS® technology. Fully protected by embedded protection functions.

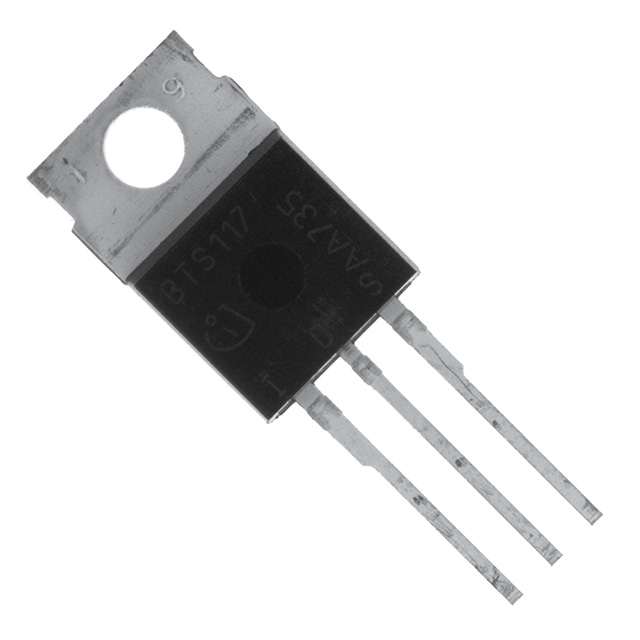

BTS117
