Part Number: BTS6510



MFG: P-TO220-7

Package Cooled: 7850

D/C: INFINEON

Description: N channel vertical power FET with charge pump, current controlled input and diagnostic feedback with load current sense...


Urgent Purchase

BTS6510 General Description


N channel vertical power FET with charge pump, current controlled input and diagnostic feedback with load current sense, integrated in Smart SIPMOS® chip on chip technology. Providing embedded protective functions.

BTS6510 Maximum Ratings

Parameter

Symbol

Values

Unit

Supply voltage (overvoltage protection see page 4) Vbb

42

V

Supply voltage for full short circuit protection
Tj,start =-40 ...+150°C:(EAS limitation see diagram on page 9)		 Vbb

34
V
Load current (Short-circuit current, see page 5) IL

self-limited

A

Load dump protection2) VLoadDump = UA + Vs, UA = 13.5 V
RI5) = 2 ,RL=0.54, td = 200 ms;
IN,IS= open or grounded		 VLoad dump6)

75

V

Operating temperature range
Storage temperature range		 Tj
Tstg

-40 ...+150
-55 ...+150
°C
Power dissipation (DC), TC 25 °C Ptot
170
W
Inductive load switch-off energy dissipation, single pulse
Vbb =12V, Tj,start =150°C, TC = 150°C const.,
IL = 20 A, ZL = 15 mH, 0, (see diagrams on page 9) 		EAS

1.5

J

Electrostatic discharge capability (ESD)
Human Body Model acc. MIL-STD883D, method 3015.7 and ESD
assn. std. S5.1-1993, C = 100 pF, R = 1.5 k		 VESD

4

kV

Current through input pin (DC)
Current through current sense status pin (DC)
see internal circuit diagrams on page 7 and 8		 IIN
IIS
+15, -250
+15, -250
mA

BTS6510 Features

• Overload protection
• Current limitation
• Short circuit protection
• Overtemperature protection
• Overvoltage protection (including load dump)
• Clamp of negative voltage at output
• Fast deenergizing of inductive loads 1)
• Low ohmic inverse current operation
• Diagnostic feedback with load current sense
• Open load detection via current sense
• Loss of Vbb protection2)
• Electrostatic discharge (ESD) protection

BTS6510 Typical Application

• Power switch with current sense diagnostic feedback for 12 V and 24 V DC grounded loads
• Most suitable for loads with high inrush current like lamps and motors; all types of resistive and inductive loads
• Replaces electromechanical relays, fuses and discrete circuits

BTS6510 datasheet

BTS6510
PDF/DataSheet Download

  • Datasheet: BTS6510
  • File Size: 269946 KB
  • Manufacturer: INFINEON [Infineon Technologies AG]
  • Click here to Download

Find BTS6510 Suppliers

  • ·BTS100
  • SIEMENS [Siemens Semiconductor Group]
  • Smart Highside Power Switch TEMPFET (P channel Enhancement mode Temperature sensor with thyristor characteristic)
  • 447180 KB
  • BTS100 Datasheet Download
  • ·BTS110
  • INFINEON [Infineon Technologies AG]
  • TEMPFET(N-channel Enhancement mode Temperature sensor with thyristor characteristic)
  • 574041 KB
  • BTS110 Datasheet Download
  • ·BTS112
  • SIEMENS [Siemens Semiconductor Group]
  • TEMPFET (N channel Enhancement mode Temperature sensor with thyristor characteristic)
  • 327460 KB
  • BTS112 Datasheet Download
  • ·BTS112A
  • INFINEON [Infineon Technologies AG]
  • TEMPFET(N-channel Enhancement mode Temperature sensor with thyristor characteristic)
  • 593185 KB
  • BTS112A Datasheet Download
  • ·BTS113
  • SIEMENS [Siemens Semiconductor Group]
  • TEMPFET (N channel Logic level Enhancement mode Temperature sensor with thyristor characteristic)
  • 316535 KB
  • BTS113 Datasheet Download
  • ·BTS113A
  • INFINEON [Infineon Technologies AG]
  • TEMPFET(N-channel Logic level Enhancement mode Temperature sensor with thyristor characteristic)
  • 561964 KB
  • BTS113A Datasheet Download
  • ·BTS114
  • INFINEON [Infineon Technologies AG]
  • TEMPFET(N channel Enhancement mode Temperature sensor with thyristor characteristic)
  • 589015 KB
  • BTS114 Datasheet Download
  • ·BTS114A
  • INFINEON [Infineon Technologies AG]
  • TEMPFET(N channel Enhancement mode Temperature sensor with thyristor characteristic)
  • 589015 KB
  • BTS114A Datasheet Download

Related Part Number

BTS6510 Relative Products

  • BTS650P

    BTS650P

    N channel vertical power FET BTS650P with charge pump, current controlled input and diagnostic feedback with load current sense, integrated in Smart SIPMOS chip on chip technology. Providing embedded protective functions.

  • BTS640S2S

    BTS640S2S

    IC HIGH SIDE PWR SWITCH TO220-7

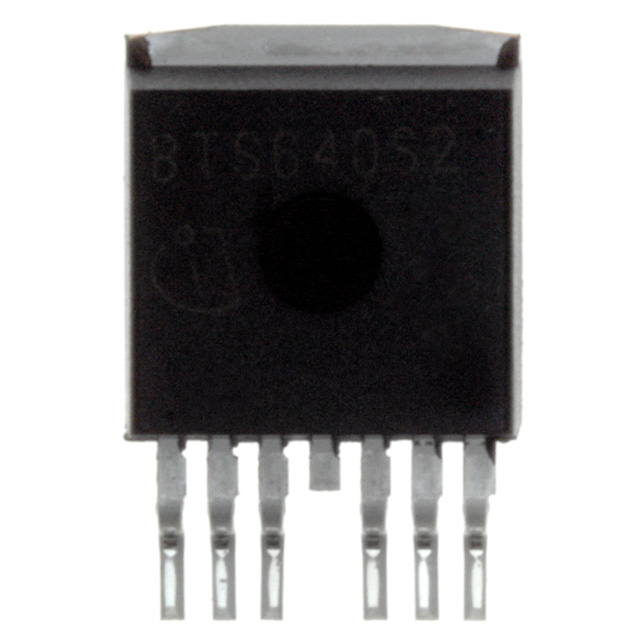

  • BTS640S2-G
