Part Number: BU2527A



MFG: PHI

Package Cooled: TO3P



Description: New generation, high-voltage, high-speed switching npn transistor in a plastic envelope intended for use in horizontal ...


Urgent Purchase

BU2527A General Description


New generation, high-voltage, high-speed switching npn transistor in a plastic envelope intended for use in horizontal deflection circuits of high resolution monitors. Features improved RBSOA performance and is suitable for operation up to 64 kHz.

BU2527A Maximum Ratings

SYMBOL PARAMETER CONDTIONS
MIN.
MAX.
UNIT

VCESM
VCEO
IC
ICM
IB
IBM
-IB(AV)
IBM
Ptot
Tstg
Tj

 Collector to emitter voltage
Collector to emitter voltage (open base)
Collector current (DC)
Collector current peak value
Base current (DC)
Base current peak value
Reverse base current
Reverse base current peak value1
Total power dissipation
Storage temperature
Junction temperature		 VBE=0V
average over any 20 ms period
Ths25
-
-
-
-
-
-
-
-
-
-65
-
1500
800
12
30
8
12
200
7
125
150
150
V
V
A
A
A
A
mA
A
W

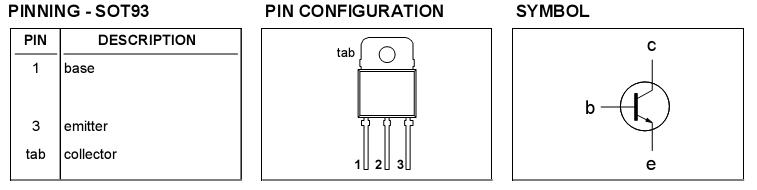

BU2527A Connection Diagram

BU2527A Connection Diagram

BU2527A datasheet

BU2527A
PDF/DataSheet Download
