Product Details

Description

Pinout

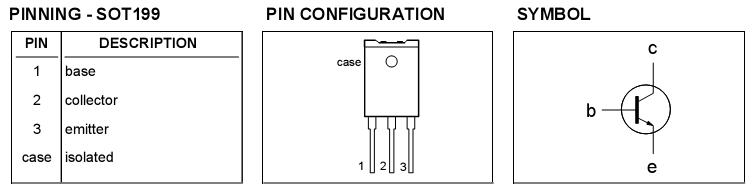

Connection Diagram

Specifications

SYMBOL	PARAMETER	CONDTIONS	MIN.	MAX.	UNIT
V_CESM V_CEO I_C I_CM I_B I_BM -I_BM P_tot T_stg T_j	Collector to emitter voltage Collector to emitter voltage (open base) Collector current (DC) Collector current peak value Base current (DC) Base current peak value Reverse base current Reverse base current peak value¹ Total power dissipation Storage temperature Junction temperature	V_BE=0V T_hs25	- - - - - - - - - -65 -	1700 825 8 15 4 6 5 45 150 150	V V A A A A A W

Description

High voltage, high speed switching npn transistor in a plastic full-pack envelope. Intended for use in horizontal deflection circuits of colour television receivers. Features of BU2708AF exceptional tolerance to base drive and collector current load variations, resulting in a low worst-case dissipation. Designed to withstand V_CES pulses up to 1700 V.
