BU2708AX

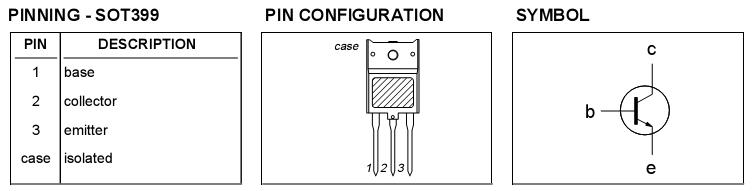

Pinout






Specifications

SYMBOL	PARAMETER	CONDTIONS	MIN.	MAX.	UNIT
VCESM VCEO IC ICM IB IBM -IBM Ptot Tstg Tj	Collector to emitter voltage Collector to emitter voltage (open base) Collector current (DC) Collector current peak value Base current (DC) Reverse base current Reverse base current peak value1 Total power dissipation Storage temperature Junction temperature	VBE=0V Ths25	- - - - - - - - - -65 -	1700 825 8 15 4 6 5 45 150 150	V V A A A A A W

Description

High voltage, high speed switching npn transistor BU2708AX in a plastic full-pack envelope. Intended for use in horizontal deflection circuits of colour television receivers. Features of BU2708AX exceptional tolerance to base drive and collector current load variations, resulting in a low worst-case dissipation. Designed to withstand V_CES pulses up to 1700 V.
