Part Number: BU307F



MFG: PH

Package Cooled: TO-220

D/C: 07+

Description: ·Collector-Emitter Sustaining Voltage- : VCEO(SUS) = 300V(Min)- BD306F 400V(Min)- BD307F·Collector Current-8A


Urgent Purchase

BU307F General Description


·Collector-Emitter Sustaining Voltage- : VCEO(SUS) = 300V(Min)- BD306F 400V(Min)- BD307F
·Collector Current-8A

BU307F Maximum Ratings

SYMBOL PARAMETER RATING UNIT
VCBO Collector to base voltage
BU306F
BU307F		 600
700		 V
VCEO Collector to emitter voltage
BU306F
BU307F		 300
400		 V
VEBO Emitter to base voltage 9 V
IC Collector current 8 A
ICM Collector current-peak 16 A
IB Base current 4 A
IBM Base Current-Peak 8
PC Collector Power DissipationTC=25 20 W
Tj Junction temperature 150
Tstg Storage temperaturerange -65 ~+150

BU307F Typical Application

·Designed for use in switching regulators, inverters, motor controls, solenoid/relay drivers and deflection circuits.

BU307F datasheet

BU3071HFV
PDF/DataSheet Download

Find BU307F Suppliers

  • ·BU3076HFV
  • ROHM [Rohm]
  • Clock Generator
  • 270079 KB
  • BU3076HFV Datasheet Download
  • ·BU3150
  •
  •
  • 118255 KB
  • BU3150 Datasheet Download
  • ·BU323A
  • MOTOROLA [Motorola, Inc]
  • 16 AMPERE PEAK POWER TRANSISTOR DARLINGTON NPN SILICON 400 VOLTS 175 WATTS
  • 244877 KB
  • BU323A Datasheet Download
  • ·BU323AP
  • MOTOROLA [Motorola, Inc]
  • DARLINGTON NPN SILICON POWER TRANSISTOR 400 VOLTS 125 WATTS
  • 223289 KB
  • BU323AP Datasheet Download
  • ·BU323AP/D
  •
  • DARLINGTON NPN SILICON POWER TRANSISTOR
  • 206306 KB
  • BU323AP/D Datasheet Download
  • ·BU323Z
  • MOTOROLA [Motorola, Inc]
  • AUTOPROTECTED DARLINGTON 10 AMPERES 360-450 VOLTS CLAMP 150 WATTS
  • 205450 KB
  • BU323Z Datasheet Download
  • ·BU323Z/D
  •
  • 360-50 VOLTS CLAMP 150 WATTS
  • 168512 KB
  • BU323Z/D Datasheet Download
  • ·BU325
  • STMICROELECTRONICS [STMicroelectronics]
  • HIGH VOLTAGE SWITCH
  • 147287 KB
  • BU325 Datasheet Download

Related Part Number

BU307F Relative Products

  • BU3071HFV

    BU3071HFV

    The BU3071HFV is a clock generator,silicon monolithic integrated circuit. Features of the BU3071HFV are:(1)to generate clocks for digital still camera system; (2)to generate clocks by connecting reference clock; (3)selection of OE pin enabling power-down fu...

  • BU306F

    BU306F

    The BU306F features are as follows: ·Collector-Emitter Sustaining Voltage- : VCEO(SUS) = 300V(Min)- BD306F 400V(Min)- BD307F·Collector Current-8A

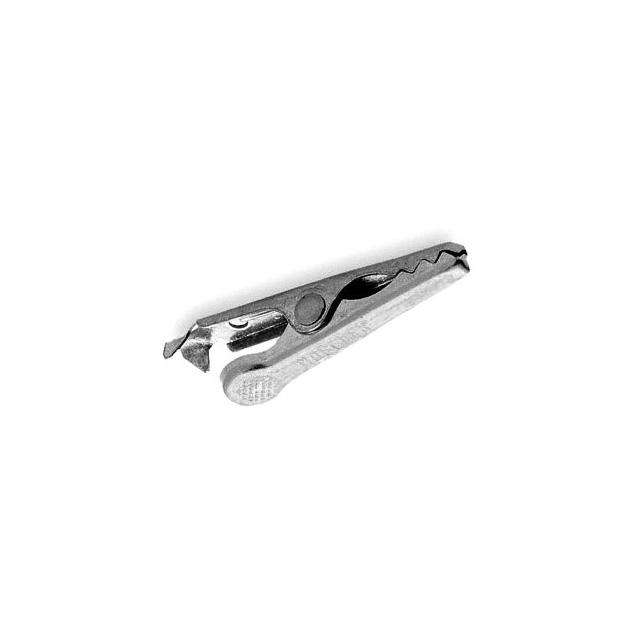

  • BU-30
