General Description
BU34675 General Description
The BU34675 is a compact 4-bit, single-chip microcontroller that includes all the I / O required for CD system control.
Circuits on the chip include a pulse width measurement counter (PWC), SIO, and an LCD controller / driver for a 28-segment display. The LCD segments can all be switched in software to CMOS output, and the extensive I / O allows many functions with a low pin count.
BU34675 Maximum Ratings
| Parameter | Symbol | Limits | Unit |
| Maximum applied voltage | VDD | 0.3 ~ + 7.0 | V |
| Operating temperature | Topr | 25 ~ +75 | |
| Power dissipation | Pd | 500 | mW |
| Storage temperature | Tstg | 55 ~ + 125 | °C |
* Reduced by 5mW for each increase in Ta of 1 over 25
BU34675 Features
1) Low-voltage, high-speed operation (VDD = 2.3 to 5.5V at 4.4MHz).
2) Pulse width measurement counter on chip (for remote control reception).
3) SIO provided for communication with the DSP.
4) Seven-segment, four-common LCD controller / driver on chip.
5) All segments of the LCD controller / driver output can be switched to CMOS output using software.
2) Pulse width measurement counter on chip (for remote control reception).
3) SIO provided for communication with the DSP.
4) Seven-segment, four-common LCD controller / driver on chip.
5) All segments of the LCD controller / driver output can be switched to CMOS output using software.
BU34675 Typical Application
Portable CD-DA, CD / radio / cassette players

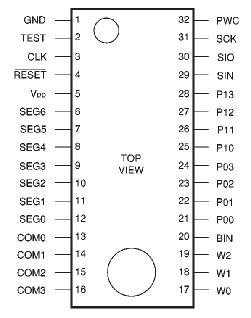

BU34675 Connection Diagram
BU34675
PDF/DataSheet Download
- Datasheet: BU34675
- File Size: 152474 KB
- Manufacturer: ROHM [Rohm]
- Click here to Download
