Purchase BU4081BFV, In-stock BU4081BFV From SeekIC.
Part Number: BU4081BFV
Description: The BU4081B, BU4081BF, and BU4081BFV are dual-input positive-logic AND gates with four circuits mounted on a single chi...
- Table of contents:
BU4081BFV
-
Suppliers
DataSheet
General Description
BU4081BFV General Description
The BU4081B, BU4081BF, and BU4081BFV are dual-input positive-logic AND gates with four circuits mounted on a single chip. An inverter-type buffer is added to the gate output, improving input / output transmission speed, and an increased load capacitance suppresses fluctuation in transmission time to a minimum.
BU4081BFV Maximum Ratings
| Parameter | Symbol | Limits | Unit |
| Power supply voltage | VDD | 0.3 ~ + 18 | V |
| I / O pin current | II / O | 10 | mA |
| Power dissipation | Pd | 1000 (DIP), 450 (SOP), 350 (SSOP) | mW |
| Operating temperature | Topr | 40 ~ + 85 | |
| Storage temperature | Tstg | 55 ~ + 150 | |
| Input voltage | VIN | 0.3 ~ VDD + 0.3 | V |
BU4081BFV Features
1) Low power dissipation.
2) Wide range of operating power supply voltages.
3) High input impedance.
4) High fan-out.
5) Direct drive of 2 L-TTL inputs and 1 LS-TTL input.
2) Wide range of operating power supply voltages.
3) High input impedance.
4) High fan-out.
5) Direct drive of 2 L-TTL inputs and 1 LS-TTL input.

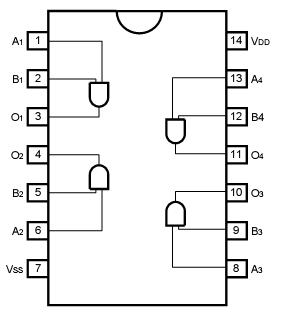

BU4081BFV Connection Diagram
BU4081BFV
PDF/DataSheet Download
- Datasheet: BU4081BFV
- File Size: 51274 KB
- Manufacturer: ROHM [Rohm]
- Click here to Download
