BU4094BC

Counter Type :
Maximum Operating Temperature : + 85 C
Minimum Operating Temperature : - 40 C
Number of Circuits : 1
Logic Type : CMOS
Number of Input Lines : 1
Counting Sequence : Serial to Serial/Parallel
Output Type : 3-State
Propagation Delay Time : 840 ns, 390 ns, 270 ns
Package / Case : DIP-16
Logic Family : 4000B
Packaging : Bulk

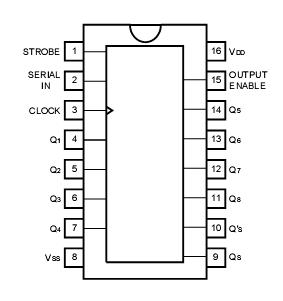

Pinout




Specifications

Parameter	Symbol	Limits	Unit
Power supply voltage	VDD	0.5 ~ + 20	V
Power dissipation	Pd	1000 (DIP), 500 (SOP) 400 (SSOP)	mW
Operating temperature	Topr	40 ~ + 85
Storage temperature	Tstg	55 ~ + 150
Input voltage	VIN	0.5 ~ VDD + 0.5	V

Description

The BU4094BC, BU4094BCF, and BU4094BCFV are shift / store registers, each consisting of an 8-bit register and an 8-bit latch.

As the data in the shift register can be latched by an asynchronous strobe input, BU4094BC is possible to hold the output in the data transfer mode.

The tri-state parallel output BU4094BC can be connected directly with an 8-bit bus line.

These registers of BU4094BC are suitable for in-line / parallel data conversion, data receivers and other similar applications.


Parameters:

Technical/Catalog Information	BU4094BC
Vendor	Rohm Semiconductor
Category	Integrated Circuits (ICs)
Logic Type	Shift Register
Function	Serial to Parallel
Number of Elements	1 - Single
Number of Bits per Element	8
Output Type	Standard
Voltage - Supply	3 V ~ 18 V
Mounting Type	Through Hole
Package / Case	16-DIP (300 mil)
Packaging	Tube
Operating Temperature	-40°C ~ 85°C
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	BU4094BC BU4094BC
