Part Number: BU9532KS2



MFG: ROHM

Package Cooled: QFP



Description: BU9532KS2 is a digital signal processor LSI with built-in pre-servo amplifier developed for CD players.This bui...


Urgent Purchase

BU9532KS2 General Description


BU9532KS2 is a digital signal processor LSI with built-in pre-servo amplifier developed for CD players.

This built-in pre-servo amplifier is applied to the RW functions of the compact disc. Combining ROHM's BU24393 a system micro controller with this new DSP BU9532KS2 provides an extremely simplified CD system.

BU9532KS2 Maximum Ratings

Parameter
Symbol
Limits
Unit
Maximum applied voltage
VCC
4.5
V
Power dissipation
Pd
850*
mW
Operating temperature range
Topr
-25-75
Storage temperature range
Tstg
-55-75
*Derating : 8.5mW/°C for operation above Ta=25°C

BU9532KS2 Features

1) Built-in pre-servo amplifier for playing CD-RW
2) Tracking, Focus automatic control
3) Symmetry correction function
4) Built-in x8 over sampling filter + 1 bit DAC
5) Digital bass boost, soft mute function

BU9532KS2 Typical Application

Portable CD players, CD radio cassette players

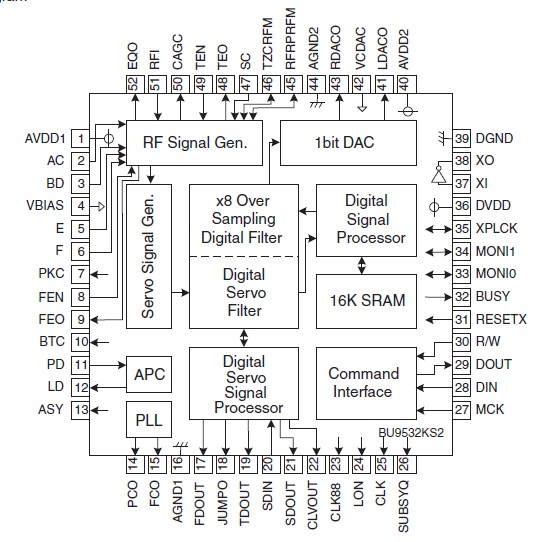

BU9532KS2 Connection Diagram

BU9532KS2 Connection Diagram
