Product Details

Description

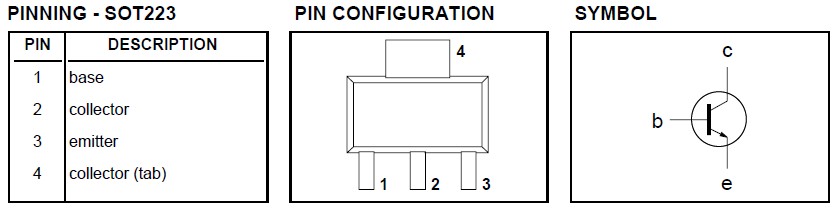

Pinout

Connection Diagram


Specifications

 SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCESM
VCEO
VCBO
IC
ICM
IB
IBM
Ptot
Tstg
Tj		 Collector to emitter voltage
Collector to emitter voltage (open base)
Collector to base voltage (open emitter)
Collector current (DC)
Collector current peak value
Base current (DC)
Base current peak value
Total power dissipation
Storage temperature
Junction temperature		 VBE = 0 V
Tsp25

-
-
-
-
-
-
-
-
-65
-

 700
400
700
1.0
2.0
0.5
1.0
6
150
150

V
V
V
A
A
A
A
W




Description

High-voltage, high-speed planar-passivated npn power switching transistor BUJ100AT in the SOT223 envelope intended for use in compact fluorescent lamps, low power electronic lighting ballasts and similar high frequency converters and inverters.
