Part Number: BUJ205AX



MFG: PHIL/ST/MOT

Package Cooled: TO-220

D/C: 06+

Description: High-voltage, high-speed planar-passivated npn power switching transistor in the plastic full-pack envelope intended fo...


Urgent Purchase

BUJ205AX General Description


High-voltage, high-speed planar-passivated npn power switching transistor in the plastic full-pack envelope intended for use in high frequency electronic lighting ballast applications, converters, inverters, switching regulators, motor control systems, etc.

BUJ205AX Maximum Ratings

SYMBOL PARAMETER CONDTIONS
TYP.
MAX.
UNIT

VCESM
VCBO
VCEO
IC
ICM
Ptot
VCEsat
tf

 Collector to emitter voltage
Collector-Base voltage (open emitter)
Collector-emitter voltage (open base)
Collector current (DC)
Collector current peak value
Total power dissipation
Collector-emitter saturation voltage
Fall time		 VBE=0V
Tmb 25 °C
IC = 5.0 A;IB = 1.0 A
Ic=6A,IB1=1.2A
-
-
-
-
-
-
-
-
850
850
450
8
12
32
1.5
300
V
V
V
A
A
W
V
s

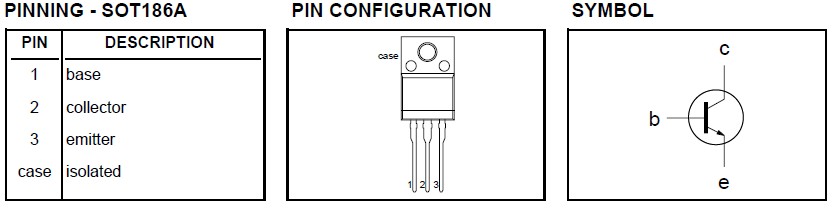

BUJ205AX Connection Diagram

BUJ205AX Connection Diagram

BUJ205AX datasheet

BUJ205AX
PDF/DataSheet Download
