Part Number: BUJ303B



MFG: PHILIPS

Package Cooled: TO-



Description: High-voltage, high-speed planar-passivated npn power switching transistor in a TO220AB envelope intended for use in hig...


Urgent Purchase

BUJ303B General Description


High-voltage, high-speed planar-passivated npn power switching transistor in a TO220AB envelope intended for use in high frequency electronic lighting ballast applications, converters, inverters, switching regulators, motor control systems, etc.

BUJ303B Maximum Ratings

SYMBOL PARAMETER CONDTIONS
MIN.
MAX.
UNIT
VCESM
VCEO
VCBO
IC
ICM
IB
IBM
Ptot
Tstg
Tj		 Collector to emitter voltage
Collector to emitter voltage (open base)
Collector to base voltage (open emitter)
Collector current (DC)
Collector current peak value
Base current (DC)
Base current peak value
Total power dissipation
Storage temperature
Junction temperature		 VBE=0V
Ths25
-
-
-
-
-
-
-
-
-65
-
1050
400
1050
5
10
2
4
100
150
150
V
V
V
A
A
A
A
W

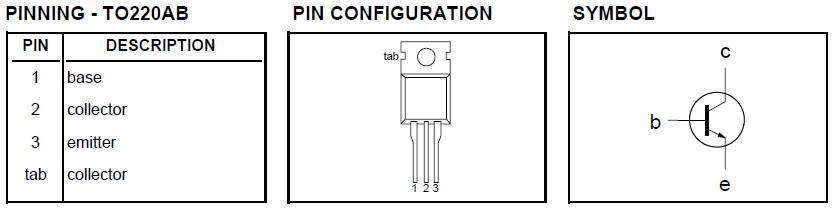

BUJ303B Connection Diagram

BUJ303B Connection Diagram
