Part Number: BUK446-1000B



MFG: PHI

Package Cooled: 03+

D/C: 220

Description: N-channel enhancement mode field-effect power transistor in a plastic full-pack envelope.

Urgent Purchase

BUK446-1000B General Description


N-channel enhancement mode field-effect power transistor in a plastic full-pack envelope.

The device is intended for use in Switched Mode Power Supplies (SMPS), motor control, welding, DC/DC and AC/DC converters, and in general purpose switching applications.

BUK446-1000B Maximum Ratings

SYMBOL PARAMETER CONDITIONS
MIN.
MIN.
MIN.

VDS
VDGR
±VGS
ID
ID
IDM
Ptot
Tstg
Tj

 Drain-source voltage
Drain-gate voltage
Gate-source voltage
Drain current (DC)
Drain current (DC)
Drain current (pulse peak value)
Total power dissipation
Storage temperature
Junction Temperature		 -
RGS=20k
-
Ths = 25 °C
Ths = 100 °C
Ths = 25 °C
Ths = 25 °C
-
-

-
-
-
-
-
-
-
-55
-

1000
1000
30
1.5
1.0
6
30
150
150
V
V
V
A
A
A
W

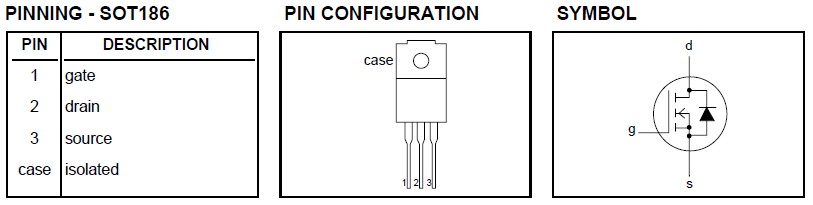

BUK446-1000B Connection Diagram

BUK446-1000B Connection Diagram
