Product Details

Description

Pinout

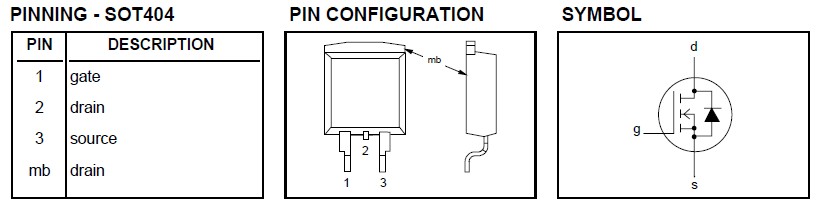

Connection Diagram

Specifications

</

SYMBOL	PARAMETER	CONDITIONS	MIN.	MIN.		MIN.
V_DS V_DGR ±V_GS I_D I_D I_DM P_tot T_stg T_j	Drain-source voltage Drain-gate voltage Gate-source voltage Drain current (DC) Drain current (DC) Drain current (pulse peak value) Total power dissipation Storage temperature Junction Temperature	- R_GS=20k - T_hs = 25 °C T_hs = 100 °C T_hs = 25 °C T_hs = 25 °C - -	- - - - - - - -55 -	100 100 30 14 10 56 75 175 175		V V V A A A W

Description

N-channel enhancement mode field-effect power transistor BUK463-100A in a plastic envelope suitable for surface mount applications.

BUK463-100A is intended for use in Switched Mode Power Supplies (SMPS), motor control, welding, DC/DC and AC/DC converters, and in general purpose switching applications.
