Product Details

Description

Pinout

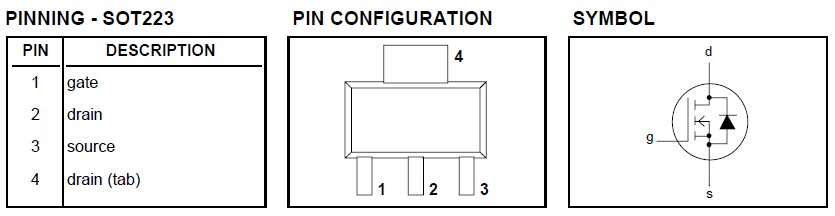

Connection Diagram

Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.	UNIT
V_DS V_DGR ±V_GS I_D I_DM I_DR I_DRM P_tot T_stg T_j	Drain-source voltage Drain-gate voltage Gate-source voltage Drain current(DC) Drain current (pulse peak value) Source-drain diode current(DC) Source-drain diode current (pulse peak value) Total power dissipation Stroage temperature Junction Temperature	R_GS=20 k - T_sp=25 T_sp=100 T_sp=25 T_sp=25 T_sp=25 T_sp=25	- - - - - - - - - -55 -	200 200 30 2.0 1.3 8.0 2.0 8.0 8.3 150 150	V V V A A A A A W

Description

N-channel enhancement mode field-effect power transistor BUK482-200A in a plastic envelope suitable for surface mounting featuring high avalanche energy capability, stable blocking voltage, fast switching and high thermal cycling performance. Intended for use in Switched Mode Power Supplies (SMPS) and general purpose switching applications.
